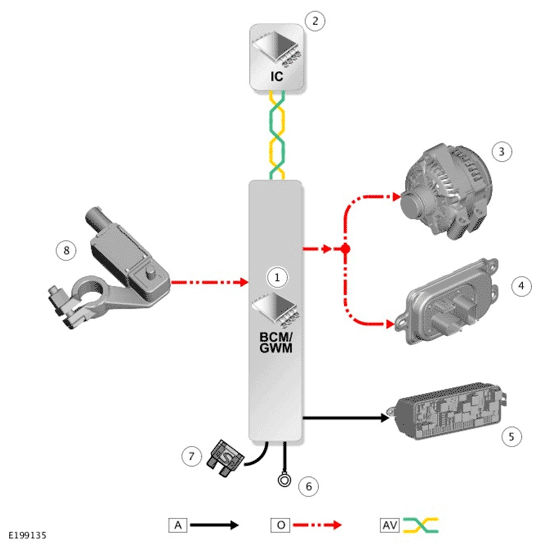

Control Diagram - 1 Of 3 - Single Battery System
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEM BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Instrument Cluster (IC) |
| 3 | Generator |
| 4 | Voltage Quality Module (VQM) - Vehicles with auto stop/start system, except cold climate TDV6 3.0L diesel engine and TDV8 4.4L diesel engine vehicles |
| 5 | Rear Junction Box (RJB) |
| 6 | Ground |
| 7 | Power supply |
| 8 | Battery Monitoring System (BMS) sensor |
