MHEV Battery Disconnect And Connect (G2328507): Connect

  1. G14073309Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the MHEV battery positive cable.
    • Install and tighten the nut.

      Torque  : 10 Nm

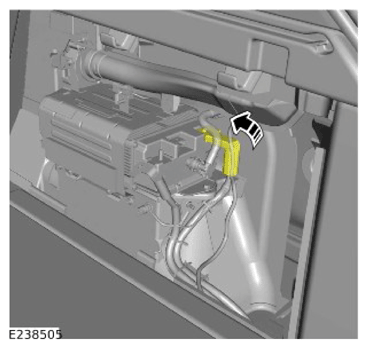

  2. G14073311Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the MHEV battery positive terminal cover.

  3. G14073307Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the MHEV battery negative cable.
    • Install and tighten the nut.

      Torque  : 12 Nm

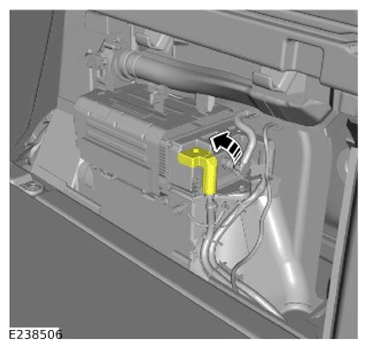

  4. G14073313Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the MHEV battery negative terminal cover.

  5. G14073304Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connector.

  6. Install the MHEV battery breather hose.

    Refer to: MHEV BATTERY BREATHER HOSE

  7. Connect the startup battery ground cable.

    Refer to: SPECIFICATIONS
