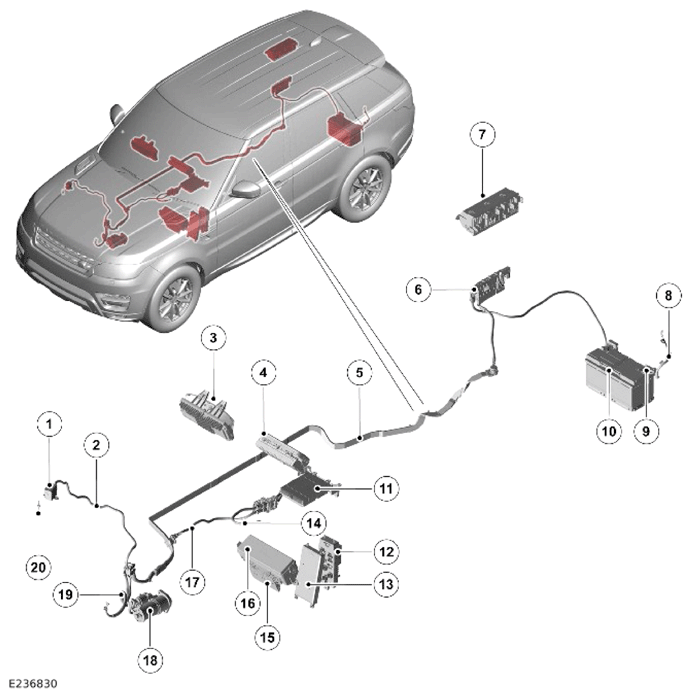

Component Location - 1 Of 1
NOTE:
Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Jump start terminal for the jump start (positive) connection |
| 2 | Startup battery cable - Startup battery busbar to the jump start (positive) terminal |
| 3 | Instrument Cluster (IC) |
| 4 | Interactive Display Module 'A' (IDMA) |
| 5 | Startup battery busbar |
| 6 | Battery Junction Box (BJB) |
| 7 | Rear Junction Box (RJB) |
| 8 | Ground cable |
| 9 | Battery Monitoring System (BMS) control module |
| 10 | Startup battery |
| 11 | Direct Current to Direct Current (DC/DC) converter |
| 12 | Passenger Junction Box (PJB) |
| 13 | Body Control Module/Gateway Module (BCM/GWM) |
| 14 | Ground cable from DC/DC converter busbar to the vehicle body ground connection |
| 15 | Auxiliary Junction Box (AJB) |
| 16 | Engine Junction Box (EJB) |
| 17 | Startup battery cable (quantity 3) |
| 18 | Starter motor |
| 19 | Ground cable |
