Powertrain Control Module

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

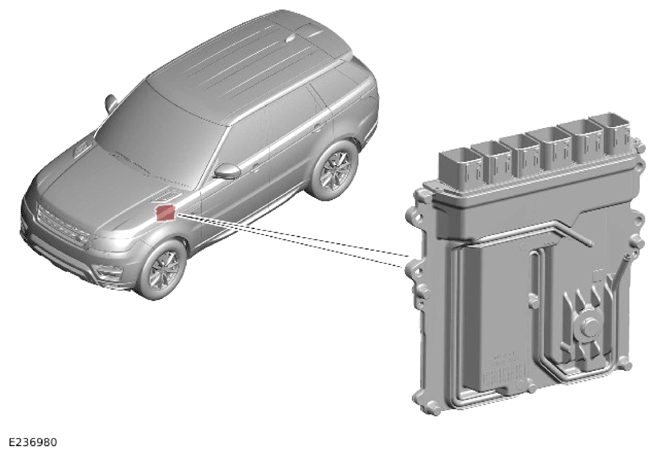

The Powertrain Control Module (PCM) is located in the engine compartment at the rear left.

The PCM has the following High Speed (HS) communication links:

• FlexRay
• HS Controller Area Network (CAN) power mode zero systems bus.

The PCM communicates through the HS CAN power mode zero systems bus with the following:

• The Battery Energy Control Module (BECM) in the MHEV battery.
• The electric supercharger.

For additional information, refer to: ELECTRONIC ENGINE CONTROLS
