MHEV Battery Housing

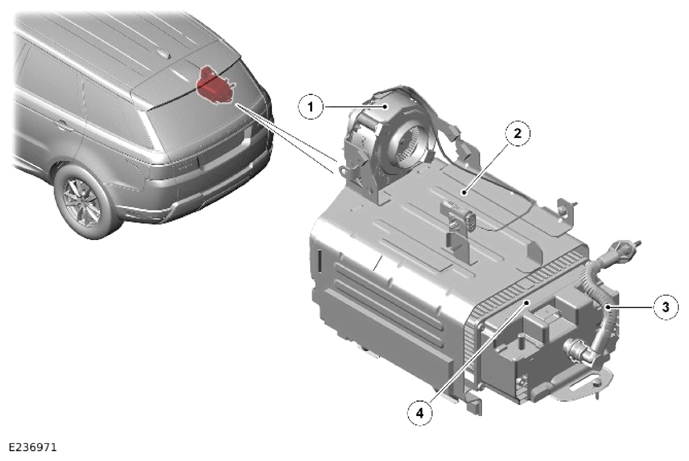

G14073293Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 MHEV battery electric cooling fan
2 MHEV battery housing
3 MHEV battery breather pipe
4 MHEV battery

The MHEV battery housing contains the following components:
