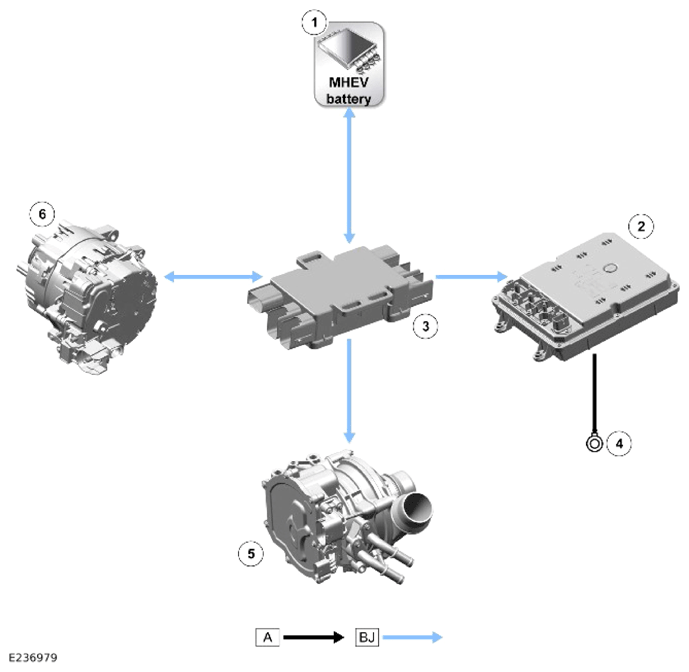

Control Diagram - 2 Of 2 - MHEV Battery Cables
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: BJ = MHEV BATTERY CABLES.
| ITEM |
DESCRIPTION |
| 1 |
MHEV battery |
| 2 |
Direct Current to Direct Current (DC/DC) converter |
| 3 |
MHEV battery junction box |
| 4 |
Ground |
| 5 |
Electric supercharger |
| 6 |
Belt Integrated Starter Generator (BISG) |
