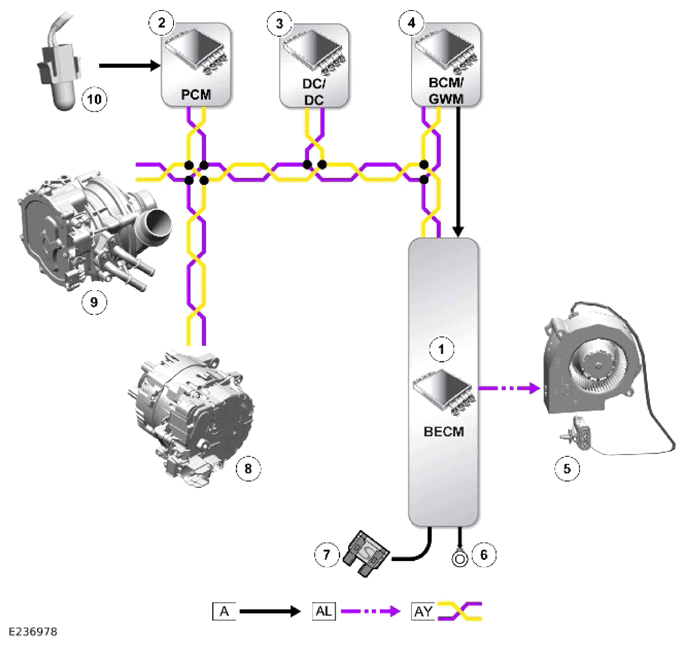

Control Diagram - 1 Of 2
A = HARDWIRED: AL - PULSE WIDTH MODULATION: AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery Energy Control Module (BECM) - Integrated in the MHEV battery |
| 2 | Powertrain Control Module |
| 3 | Direct Current to Direct Current (DC/DC) converter |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | MHEV battery electric cooling fan |
| 6 | Ground |
| 7 | Power supply |
| 8 | Belt Integrated Starter Generator (BISG) |
| 9 | Electric supercharger |
| 10 | Ambient Air Temperature (AAT) sensor in the left door mirror |
