Component Location - 1 Of 1
NOTE:
Right Hand Drive (RHD) is shown, Left Hand Drive (LHD) is similar.

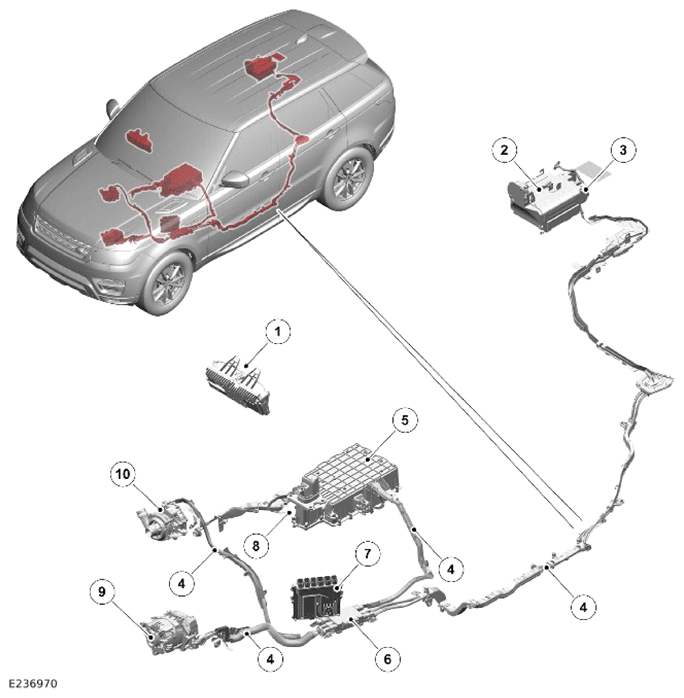

| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | MHEV battery |
| 3 | MHEV battery housing |
| 4 | MHEV battery cables (quantity 4) |
| 5 | Direct Current to Direct Current (DC/DC) converter housing |
| 6 | MHEV battery jucntion box |
| 7 | Powertrain Control Module (PCM) |
| 8 | Ground cable |
| 9 | Belt Integrated Starter Generator (BISG) |
| 10 | Electric supercharger |
