Toe Link (G1772292): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the toe link, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the wheel and tire.
Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

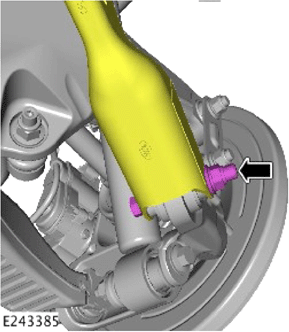

Remove and discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

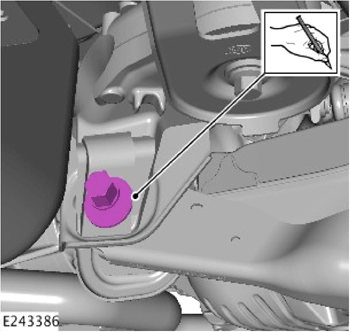

To aid installation, mark the components prior to removal in the position illustrated.

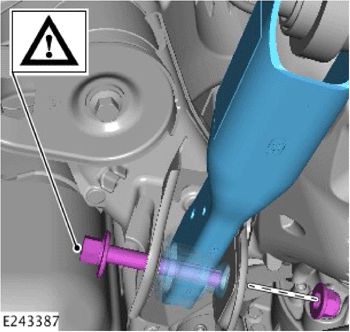

CAUTION: Use a suitable protective material to prevent damage to the fuel tank when removing the bolt. Failure to follow this instruction may cause damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the nut and bolt.
