Spring (G1951951): Installation
-

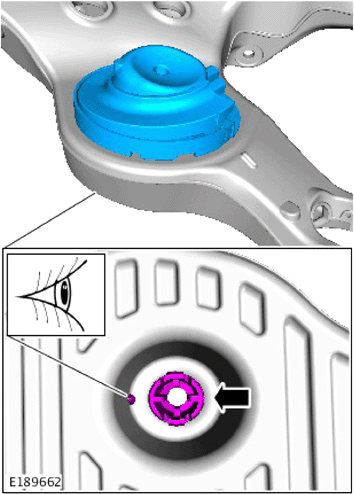

NOTE: Note the orientation of the locating pin.
Install the lower locator.
- Install the upper locator.
-
- Install the spring.
- Raise the lower control arm.
- CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
- Connect the wheel knuckle.
- Renew the nut and bolt.
Renew Part: Lower control arm nut and bolt Quantity: 1 .
Torque
Stage 1: 70 Nm
Stage 2: 240°
- CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
- Connect the integral link.
- Renew the nut and bolt.
Renew Part: Integral link nuts and bolts Quantity: 1 .
Torque
Stage 1: 50 Nm
Stage 2: 180°
- CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
- Connect the tie-rod.
- Renew the nut and bolt.
Renew Part: Tie-rod nut and bolt Quantity: 1 .
Torque
Stage 1: 70 Nm
Stage 2: 240°
- CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
- Connect the shock absorber.
- Renew the nut and bolt.
Renew Part: Shock absorber to wheel knuckle mounting nut and bolt Quantity: 1 .
Torque
Stage 1: 100 Nm
Stage 2: 240°
- CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
- Connect the stabilizer bar link.
- Renew the nut.
Renew Part: Stabilizer bar link retaining nut(s) Quantity: 1 .
Torque : 185 Nm
- Connect the height sensor.
- Install the rear wheel arch liner.
Refer to: REAR FENDER SPLASH SHIELD
- Install the rear wheel.
Refer to: WHEEL AND TIRE
