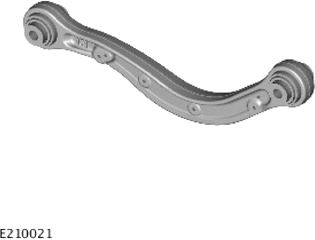

Upper Control Arm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The upper control arm is made from forged steel with a bush housing machined in both ends of the arm. The bushes are pressed into each of the housings. The inner end locates in brackets on the upper section of the subframe. The outer end of the bar locates in lugs at the top of the wheel knuckle.
