Rear Height Adjust
NOTE:
The rear switchpack is disabled when the tailgate is closed.

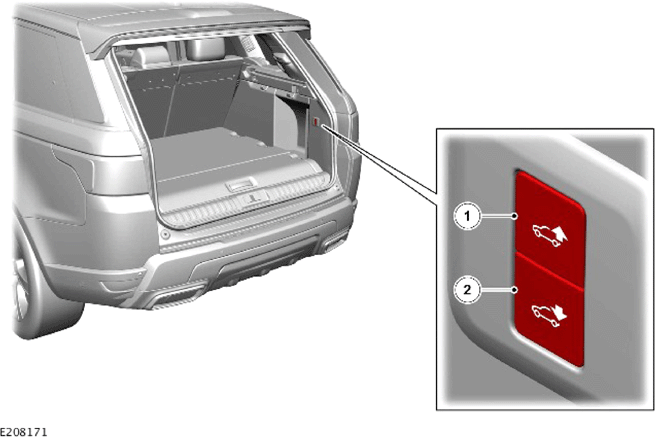

| Item | Description |
|---|---|
| 1 | Switch to raise suspension height |
| 2 | Switch to lower suspension height |
This feature allows the user to alter the vehicle rear end ride height, using switchpack in the luggage compartment to allow easier luggage compartment loading. The user can also alter the rear end ride height using the smart key. The adjustable rear height settings are also beneficial when hitching and un-hitching trailers and when maneuvering a connected trailer.
CAUTION:
Care should be taken with all suspension height changes, especially when a trailer is attached to the vehicle. Incorrect suspension adjustments can result in serious damage to the vehicle.
To operate the suspension's rear height adjust via the rear switchpack, unlock the vehicle and open the tailgate.
Operate as follows:
- Press and hold the switch (1) to raise the rear suspension.
- Press and hold the switch (2) to lower the rear suspension.
- Simultaneously press and hold both switches to set the rear suspension to the normal height setting.
Rear height settings at the tow hitch:
- Dropping 60 mm for loading the luggage compartment.
- Rising 80 mm to assist hitching or unhitching.
