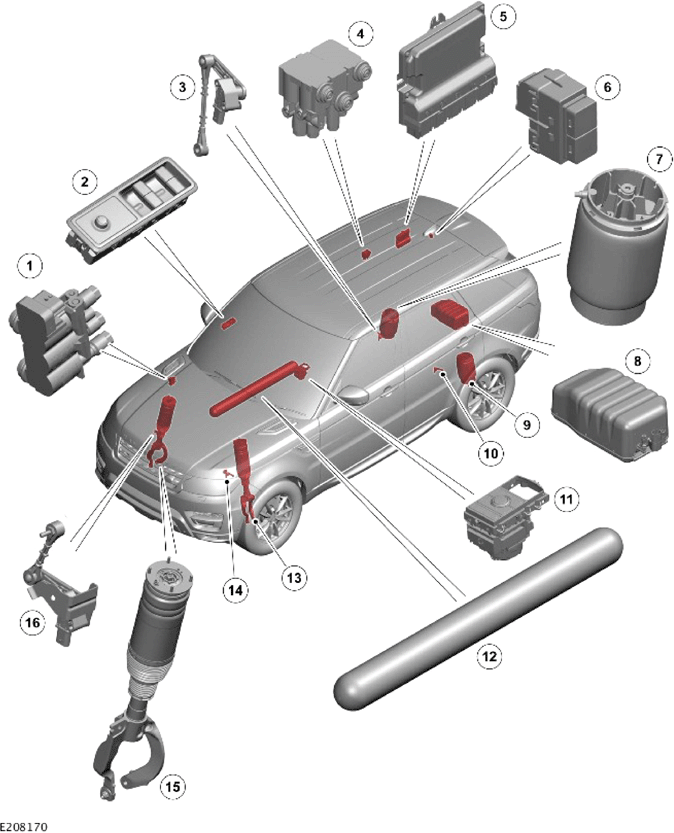

Component Location
| Item | Description |
|---|---|
| 1 | Front valve block |
| 2 | Driver door switchpack |
| 3 | Rear right height sensor |
| 4 | Rear air reservoir valve block |
| 5 | Chassis Control Module (CHCM) |
| 6 | Rear right air spring |
| 7 | Air suspension switchpack - luggage compartment |
| 8 | Suspension air supply unit |
| 9 | Rear left air spring |
| 10 | Rear left height sensor |
| 11 | Terrain Response (TR) switchpack |
| 12 | Air reservoir |
| 13 | Front left air spring and shock absorber |
| 14 | Front left height sensor |
| 15 | Front right air spring and shock absorber |
| 16 | Front right height sensor |
