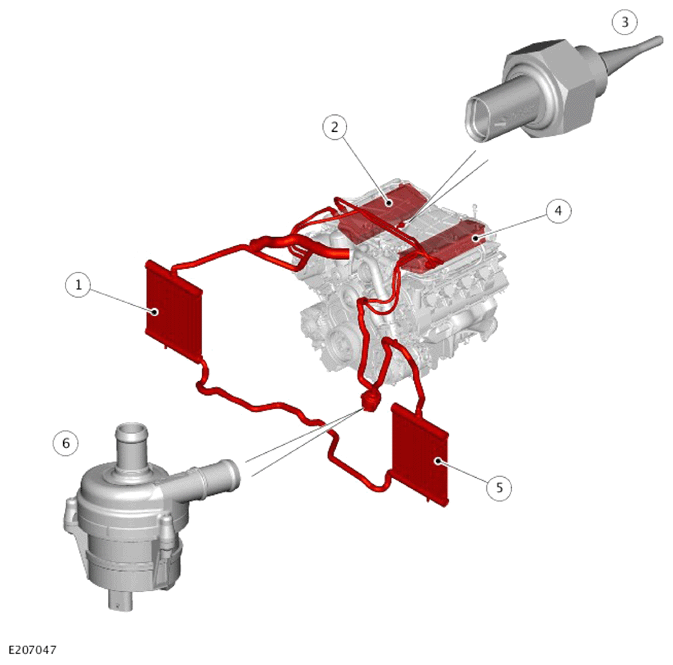

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
Charge air radiator - Right |
| 2 |
Charge air cooler - Right |
| 3 |
Charge air temperature sensor |
| 4 |
Charge air cooler - Left |
| 5 |
Charge air radiator - Left |
| 6 |
Charge air coolant pump |
