Heater Manifold
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

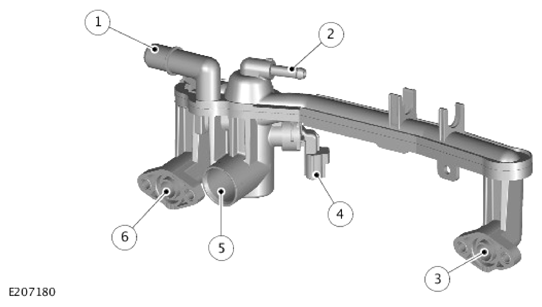

| Item |
Description |
| 1 |
Hose connection - Heater core |
| 2 |
Hose connection - Electric throttle |
| 3 |
Flange connection - Cylinder head - Bank 2 |
| 4 |
Engine Coolant Temperature (ECT) sensor |
| 5 |
Hose connection - Engine coolant bypass pipe |
| 6 |
Flange connection - Cylinder head - Bank 1 |
