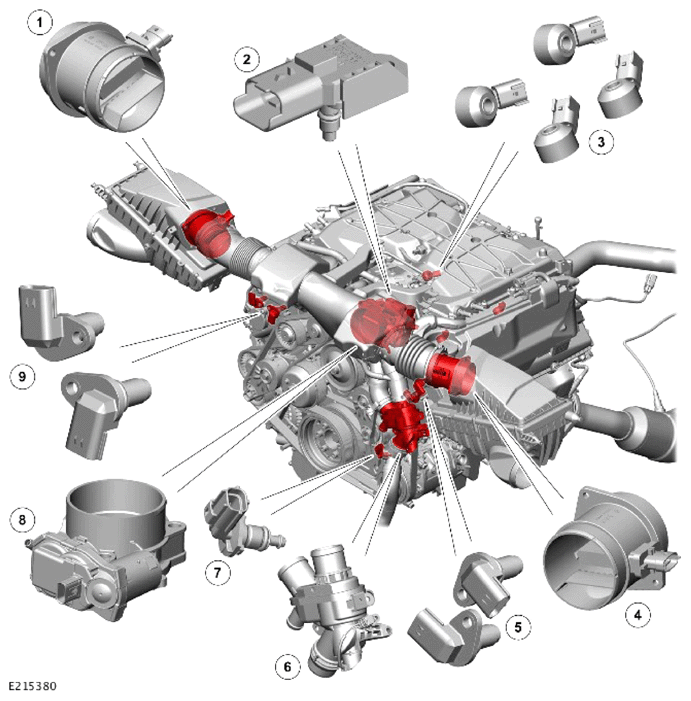

Component Location - 2 Of 4
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Mass Air Flow and Temperature (MAFT) sensor |
| 2 | Manifold Absolute Pressure (MAP) sensor |
| 3 | Knock sensor (4 off) |
| 4 | Left MAFT sensor |
| 5 | Left Camshaft Position (CMP) sensors (2 off) |
| 6 | Electric thermostat |
| 7 | Engine Coolant Temperature (ECT) sensor 2 |
| 8 | Electric throttle |
| 9 | Right CMP sensors (2 off) |
