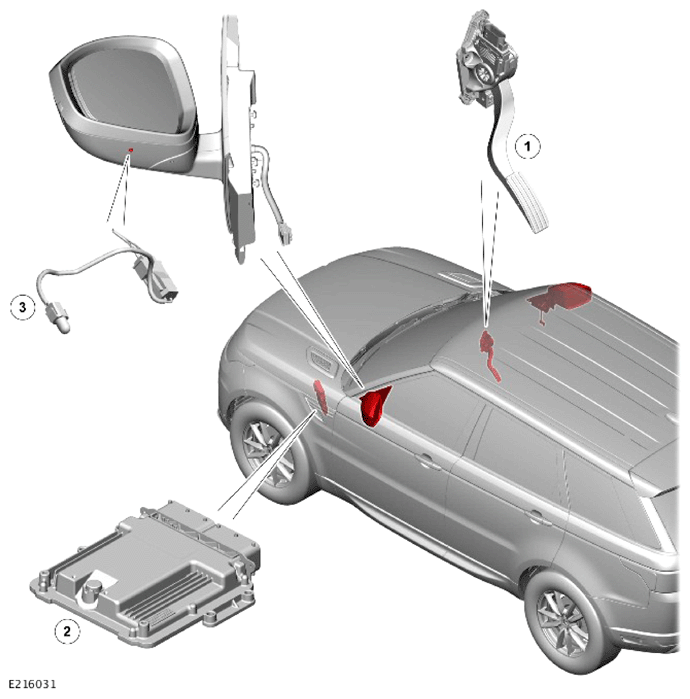

Component Location - 1 Of 4
WARNING: This page is about a different variant/trim than selected.
NOTE:
Right Hand Drive (RHD) is shown, Left Hand Drive (LHD) is similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Accelerator Pedal Position (APP) sensor |
| 2 |
Powertrain Control Module (PCM) |
| 3 |
Ambient Air Temperature (AAT) sensor |
