Special Tool(s)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

100-012

Slide Hammer

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

100-012-01

Slide Hammer Adapter

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

303-1069

Adapter, Wrench

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

303-1142

Viscous Coupling Wrench

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

303-1143

Viscous Coupling Holding Tool

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

308-375

Remover, Input and Output Seal

1. Disconnect the battery ground cable.

   Refer to: SPECIFICATIONS

2. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Special Tool(s): 303-1143
   • Special Tool(s): 303-1142
   • Torque  : 65 Nm

4. Refer to: LEFT CATALYTIC CONVERTER

   Refer to: RIGHT CATALYTIC CONVERTER

5. Refer to: FRONT DRIVESHAFT - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL

6. Refer to: REAR DRIVESHAFT - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Secure with 2 cable ties.
8. NOTE: Install new retaining clips.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

9. NOTE: Using a suitable transmission jack support the differential case.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

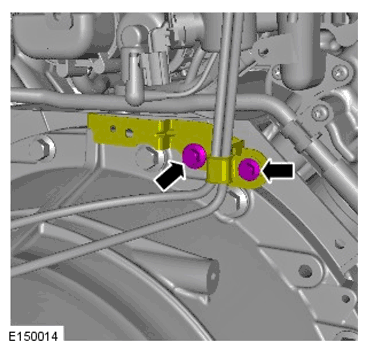

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

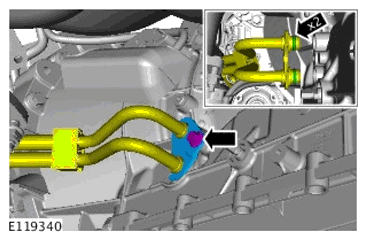

14. CAUTION:

    • Be prepared to collect escaping fluids.
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

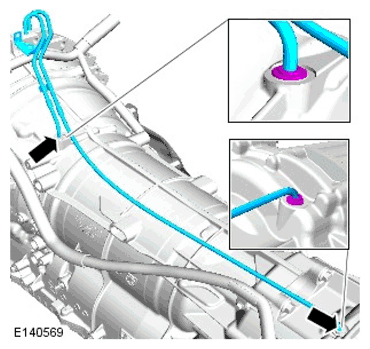

15. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

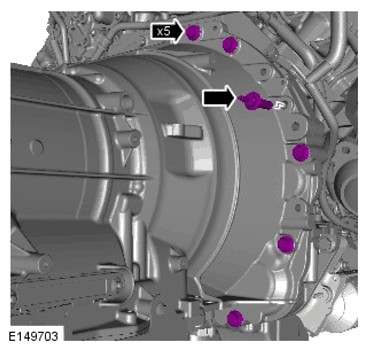

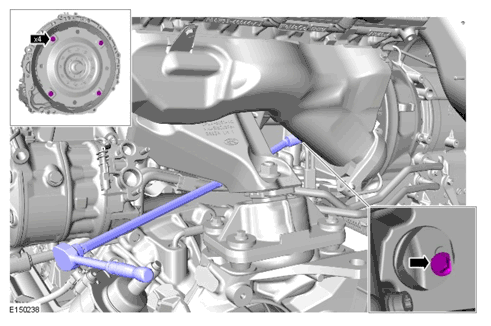

17. CAUTION:

    • Only rotate the crankshaft clockwise.
    • Discard the bolts.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

18. WARNING: Make sure that the transmission is secured with suitable retaining straps.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lower the rear of the transmission for access.

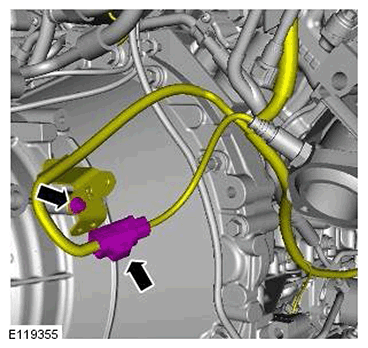

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

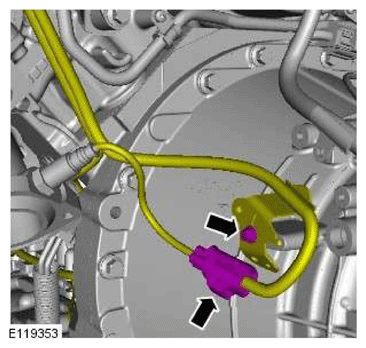

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

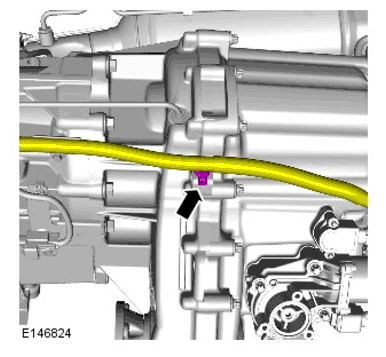

21. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

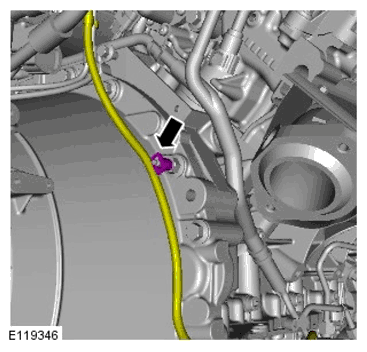

22. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

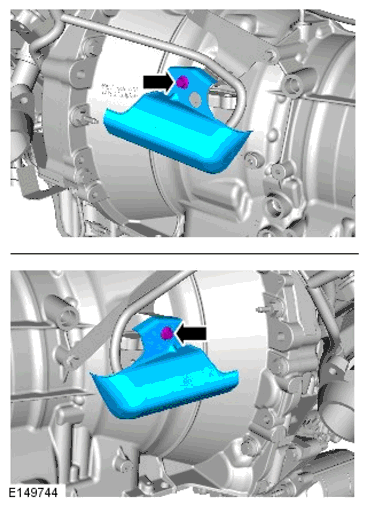

23. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

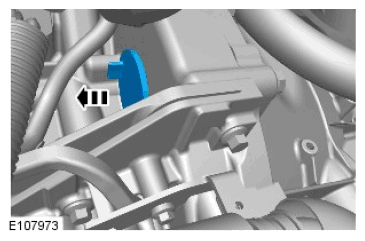

24. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

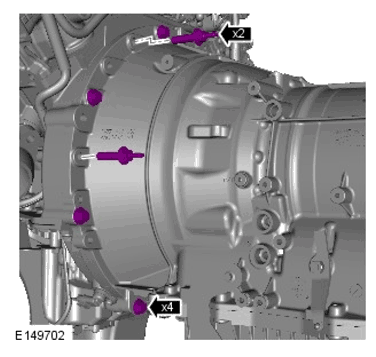

25. WARNING: This step requires the aid of another technician.
    CAUTION: Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

26. NOTE: Do not disassemble further if the component is removed for access only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

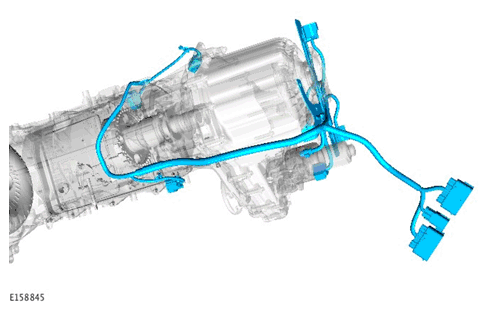

27. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

28. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

29. CAUTION: Always plug any open connections to prevent contamination.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

30. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

31. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

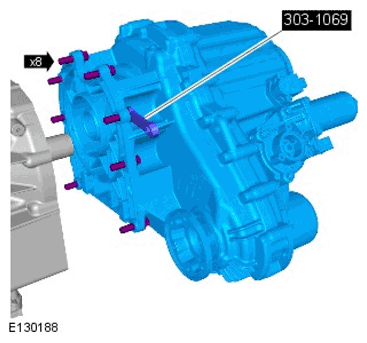

    Special Tool(s): 303-1069

32. CAUTION: Do not complete this step if a new transfer case is to be installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

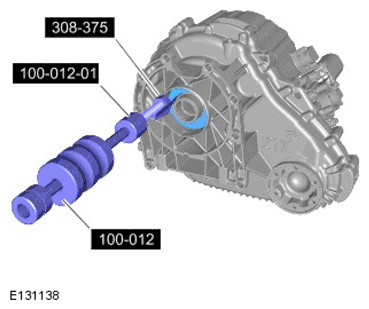

33. CAUTION:

    • Care must be taken to avoid damage to the seal and running surface.
    • Note the orientation of the component prior to removal.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Special Tool(s): 100-012  , 100-012-01  , 308-375
