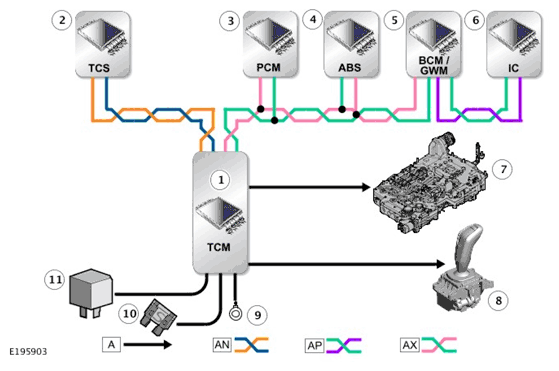

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = Hardwired: AN = High Speed (HS) Controller Area Network (CAN) powertrain systems bus: AP = HS CAN Comfort systems bus: AX = FlexRay systems bus
| Item | Description |
|---|---|
| 1 | Transmission Control Module (TCM) |
| 2 | Transmission Control Switch (TCS) |
| 3 | Powertrain Control Module (PCM) |
| 4 | Anti-lock Brake System (ABS) control module |
| 5 | Instrument Cluster (IC) |
| 6 | Mechatronic valve block |
| 7 | Transmission Control Switch (TCS) |
| 8 | Ground |
| 9 | Permanent power supply from Engine Junction Box (EJB) |
| 10 | Power supply from ignition relay in EJB |
