Special Tool(s)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

303-1435

Engine Lifting Brackets Rear

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

303-1436

Engine Lifting Bracket Front

1. Disconnect the battery ground cable.

   Refer to: SPECIFICATIONS

2. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

3. Refer to: SECONDARY BULKHEAD CENTER PANEL

4. Refer to: HOOD

5. Refer to: RADIATOR

6. Refer to: ACCESSORY DRIVE BELT

7. Refer to: ENGINE OIL VACUUM DRAINING AND FILLING

8. Refer to: TRANSMISSION - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL, VEHICLES WITH: TWIN SPEED TRANSFER CASE

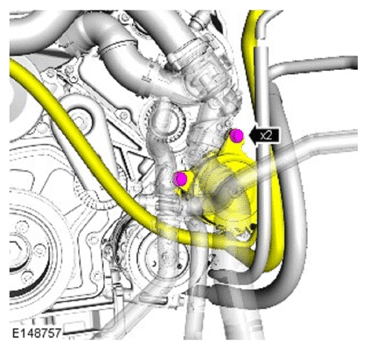

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

10. NOTE: Left hand drive only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Discard the bolt.

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

13. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION: Be prepared to collect escaping fuel.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

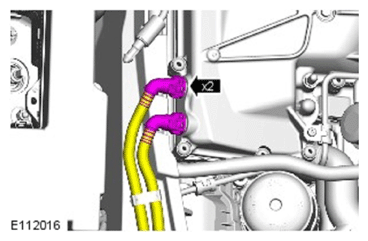

14. WARNING: Be prepared to collect escaping fluids.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

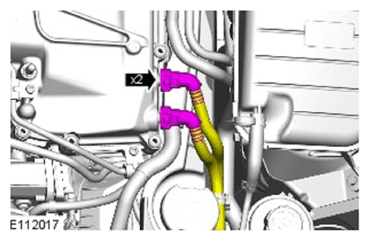

15. WARNING: Be prepared to collect escaping fluids.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

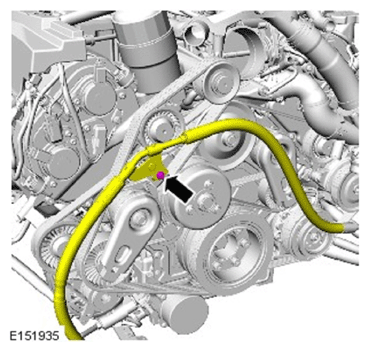

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

17. CAUTION: Be prepared to collect escaping coolant.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

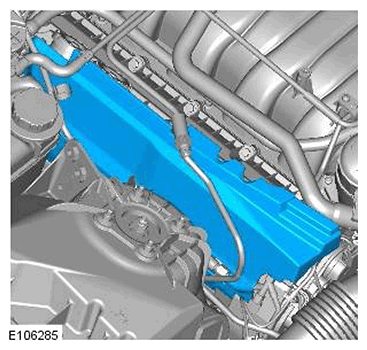

18. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

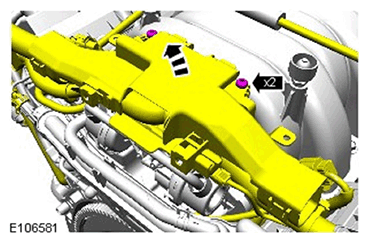

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

21. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

22. CAUTION: Be prepared to collect escaping coolant.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

23. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

24. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

25. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

26. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1435

    Torque  : 25 Nm

27. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

28. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1436

    Torque  : 25 Nm

29. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

30. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

31. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

32. NOTE: This step requires the aid of another technician.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
