Cylinder Head Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

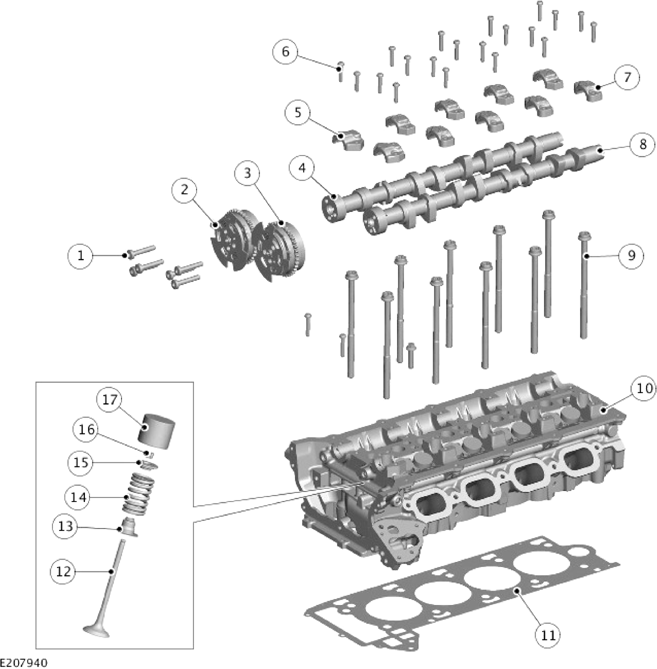

Bank 2 cylinder head is shown, Bank 1 cylinder head is similar.
| Item | Description |
|---|---|
| 1 | Bolt (6 off) |
| 2 | Variable Camshaft Timing (VCT) actuator assembly - Exhaust |
| 3 | VCT actuator assembly - Intake |
| 4 | Exhaust camshaft |
| 5 | Exhaust camshaft caps (5 off) |
| 6 | Camshaft cap bolts (20 off) |
| 7 | Intake camshaft caps (5 off) |
| 8 | Intake camshaft |
| 9 | Cylinder head bolts (13 off) |
| 10 | Cylinder head |
| 11 | Cylinder head gasket |
| 12 | Valve - 8 intake, 8 exhaust (16 off) |
| 13 | Valve spring seat and stem seal (16 off) |
| 14 | Valve spring (16 off) |
| 15 | Valve spring retainer (16 off) |
| 16 | Valve spring collet (32 off) |
| 17 | Valve tappet (16 off) |
