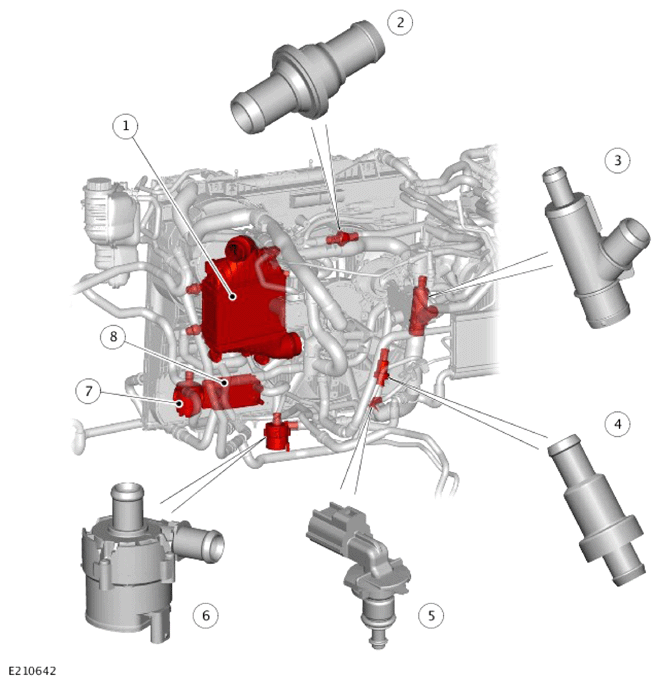

Component Location - 3 Of 3
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Charge air cooler |
| 2 |
One way valve - Radiator upper hose |
| 3 |
Pressure operated one way valve |
| 4 |
Thermostatic valve |
| 5 |
Radiator outlet temperature sensor |
| 6 |
Auxiliary coolant pump - Automatic Transmission Fluid (ATF) cooler |
| 7 |
Charge air coolant pump |
| 8 |
ATF cooler |
