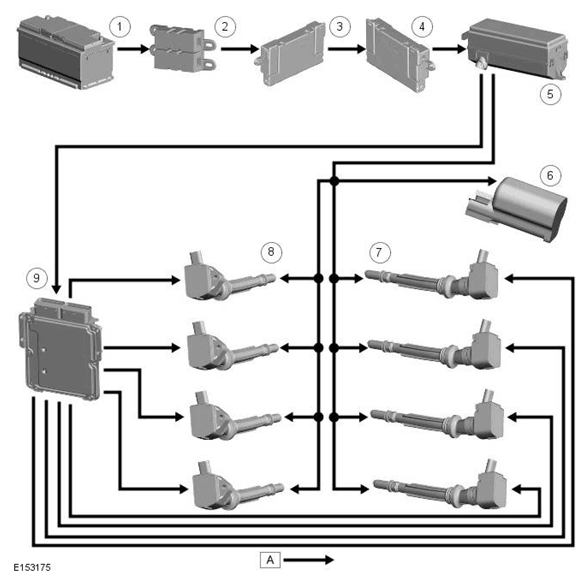

Control Diagram
WARNING: This page is about a different variant/trim than selected.
NOTE:
A = Hardwired.
| Item | Description |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB2) |
| 3 | Battery Junction Box (BJB) |
| 4 | Auxiliary Junction Box (AJB) |
| 5 | Engine Junction Box (EJB) (ECM relay) |
| 6 | RFI suppressor |
| 7 | Left cylinder bank ignition coils (4 off) |
| 8 | Right cylinder bank ignition coils (4 off) |
| 9 | Engine Control Module (ECM) |
