Electric Vehicle Quarantine (G2200010): Quarantine

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: A vehicle cover can be placed over the vehicle during the quarantine period; to prevent damage to the vehicle, for example water ingress.
    G14070558Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • The vehicle must now be positioned outside and quarantined for 48 hours  , where the following conditions are met;
    • Ample space must  be left between the vehicle and other vehicles, buildings and flammable or combustible objects throughout the quarantine period. A distance of 15 meters (50 feet) is recommended.
    • Access to the vehicle for emergency services must  be maintained throughout the quarantine period.
    • Access to the vehicle must  be secured against unauthorized access throughout the quarantine period.
    • The Warning safety sign must  be displayed in the windshield on the drivers side of the vehicle throughout the quarantine period.

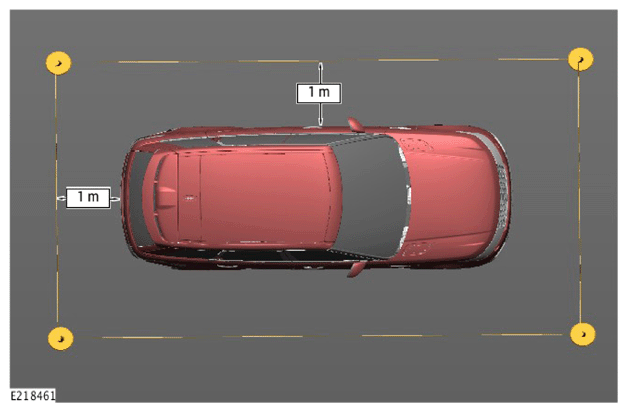

    • A safety barrier must  be placed around the vehicle, leaving a 1 meter (3 feet) gap between the vehicle and the safety barrier throughout the quarantine period.
  2. Once the vehicle has been placed into quarantine, contact Technical Support for further information.
