Hoses And Pipes
WARNING: This page is about a different variant/trim than selected.

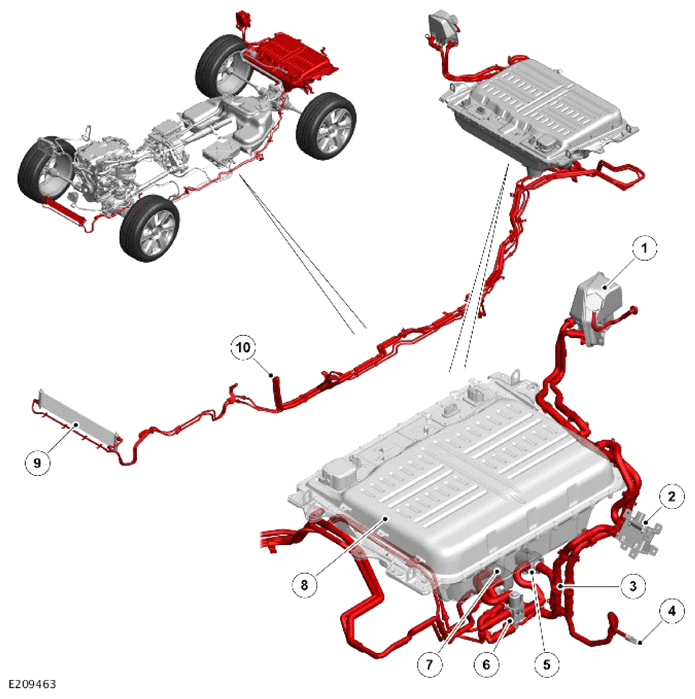

| ITEM | DESCRIPTION |
|---|---|
| 1 | PHEV battery expansion tank |
| 2 | PHEV battery heater |
| 3 | Hose block connector |
| 4 | PHEV battery coolant top up connector |
| 5 | PHEV battery coolant pump |
| 6 | PHEV battery changeover valve |
| 7 | PHEV battery cooler |
| 8 | PHEV battery |
| 9 | PHEV battery radiator |
| 10 | Connection and pipes from the Air Conditioning (A/C) system isolator valve to the PHEV battery cooler |
The pipes and hoses connect the various components to the PHEV battery in series and parallel. This allows the PHEV battery coolant to circulation through the PHEV battery and the PHEV battery temperature control system.
