Control Diagram - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the High Voltage (HV) system until the HV system on the vehicle is powered down.

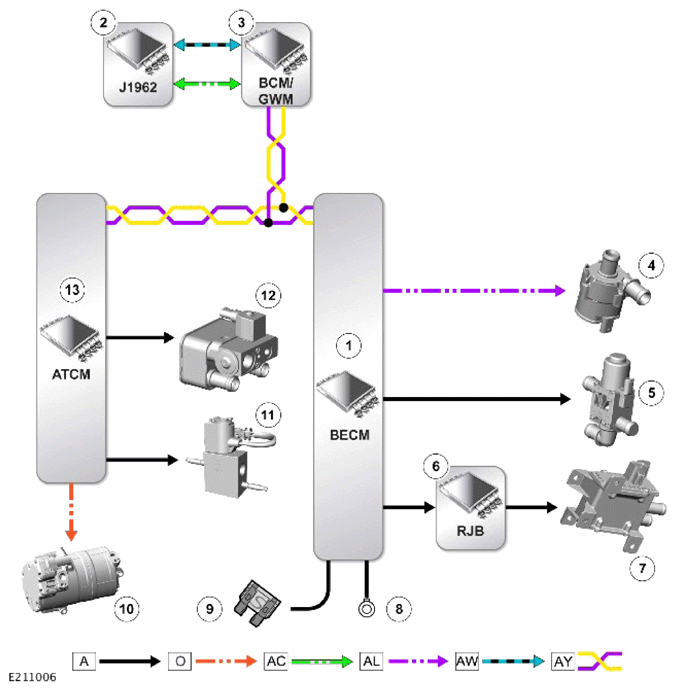

A = HARDWIRED: O = LOCAL INTERCONNECTION NETWORK (LIN): AC = DIAGNOSTIC: AL = PULSE WIDTH MODULATION (PWM): AW = ETHERNET: AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery Energy Control Module (BECM) |
| 2 | Diagnostic connection J1962 |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | PHEV battery coolant pump |
| 5 | PHEV battery changeover valve |
| 6 | Rear Junction Box (RJB) |
| 7 | PHEV battery heater |
| 8 | Ground connection |
| 9 | Fused power supply |
| 10 | Electric Air Conditioning (A/C) compressor |
| 11 | A/C front isolation valve |
| 12 | PHEV battery cooler |
| 13 | HVAC Control Module |
