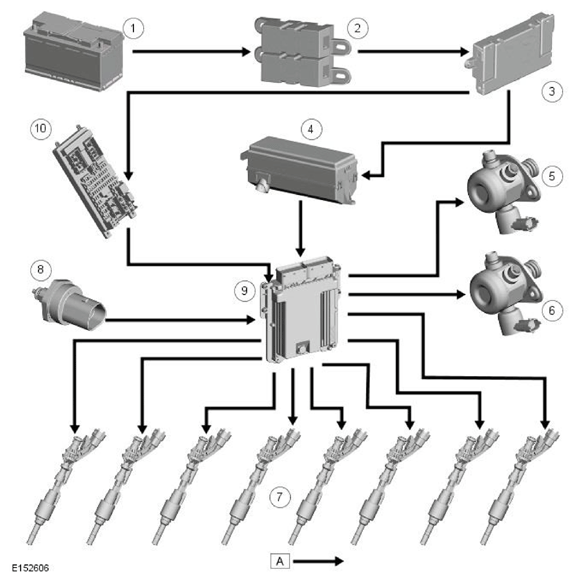

Control Diagram
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB2) |
| 3 | Battery Junction Box (BJB) |
| 4 | Engine Junction Box (EJB) |
| 5 | No. 1 HP fuel pump |
| 6 | No. 2 HP fuel pump |
| 7 | Fuel injector (8 off) |
| 8 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 9 | Engine Control Module (ECM) |
| 10 | Central Junction Box (CJB) - Ignition Relay |
