Starting System - V6 S/C 3.0L Petrol (G1514805): Specifications

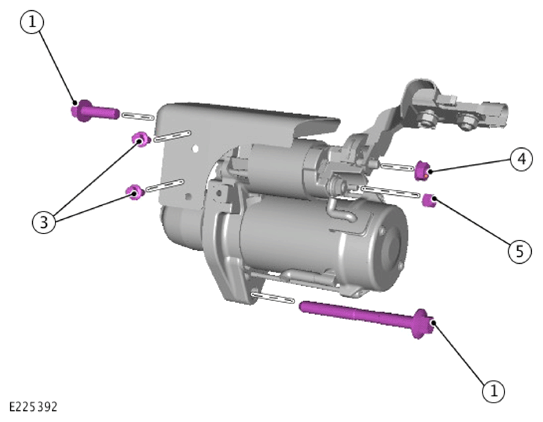

G14060166Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

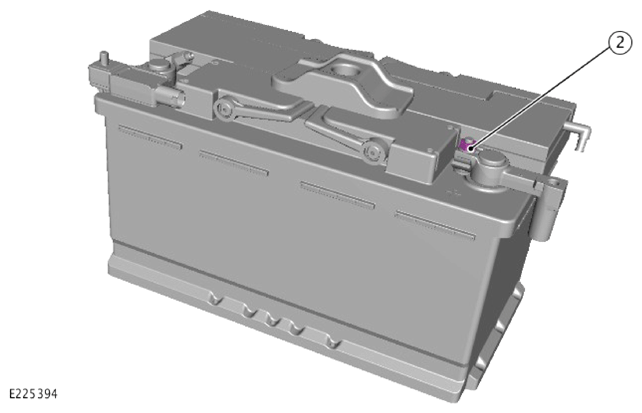

G14060167Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  Description Nm lb-ft lb-in
1 Starter motor retaining bolts 48 35.4 -
2 Battery positive terminal connector retaining nuts 6 4.4 -
3 Heat shield retaining bolts 10 7.3 -
4 Solenoid terminal connector retaining nut 9 6.6 -
5 Starter motor signal wire 6 4.4 -
