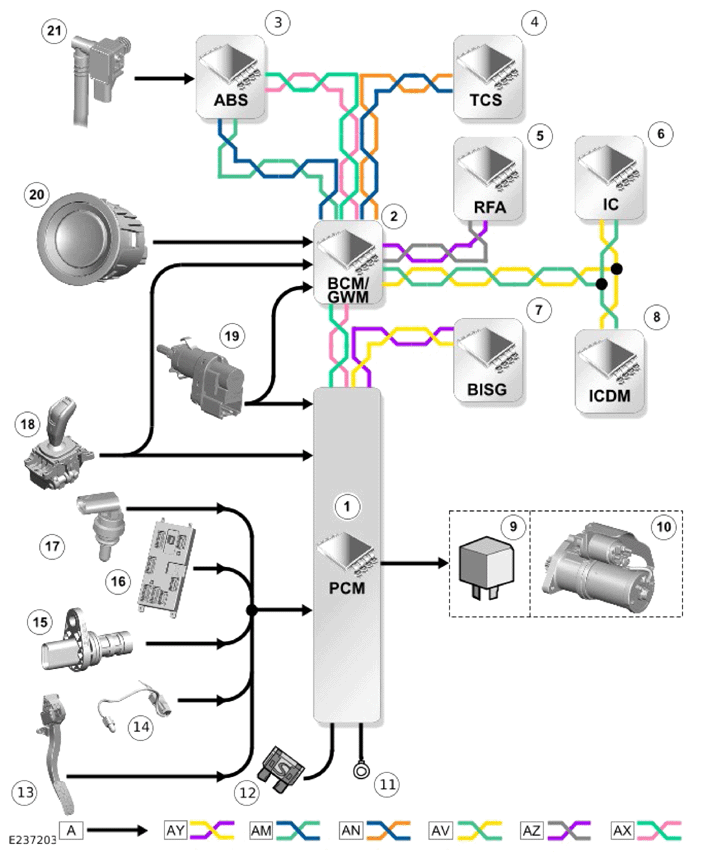

Control Diagram
A = Hardwired: AY = HS CAN power mode zero bus: AM = HS CAN chassis systems bus: AN = HS CAN powertrain systems bus: AV = HS CAN comfort systems bus: AZ = HS CAN body systems bus: AX = FlexRay.
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | BCM /GWM |
| 3 | ABS |
| 4 | TCS |
| 5 | Remote Function Actuator (RFA) |
| 6 | Instrument Cluster (IC) |
| 7 | BISG |
| 8 | Interactive Control Display Module (ICDM) |
| 9 | Starter relay |
| 10 | Starter motor |
| 11 | Ground |
| 12 | Power supply |
| 13 | Accelerator Pedal Position (APP) sensor |
| 14 | Ambient Air Temperature (AAT) sensor |
| 15 | CKP |
| 16 | Crank signal - BCM /GWM |
| 17 | Engine Coolant Temperature sensor (ECT) |
| 18 | PARK/NEUTRAL signal - TCS |
| 19 | Brake pedal switch |
| 20 | Ignition switch |
| 21 | Brake vacuum sensor |
