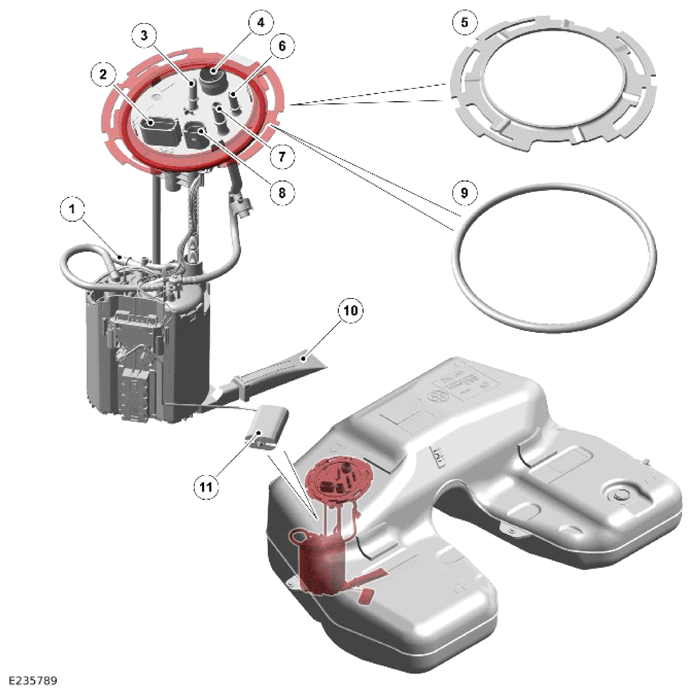

Fuel Pump Module
| ITEM | DESCRIPTION |
|---|---|
| 1 | Pipe connector - Jet pump |
| 2 | Electrical connector - Fuel Pump Driver Module (FPDM) |
| 3 | Pipe connector - Fuel Fired Booster Heater (FFBH) fuel pump - If equipped |
| 4 | Pipe connector - Breather hose |
| 5 | Flange locking ring |
| 6 | Pipe connector - Evaporative emission canister |
| 7 | Fuel delivery line |
| 8 | Electrical connector - Fuel level sensor |
| 9 | O-ring seal |
| 10 | Fuel inlet filter |
| 11 | Fuel level sensor 'A' |
The fuel pump module is installed in the right side of the fuel tank. The fuel pump module is sealed to the fuel tank with an O-ring seal and secured with a flange locking ring.
The fuel filter is installed on the bottom of the fuel pump module. The fuel pump module collects fuel from the right side of the fuel tank through the fuel filter. The fuel pump module collects fuel from the left side of the fuel tank through the suction pipe. The fuel pump module provides sufficient fuel is available in the swirl pot to the engine depending on the demands. The Fuel Pump Driver Module (FPDM) controls the fuel pump module through a Pulse Width Modulation (PWM) signal.
