Component Location - 2 Of 2

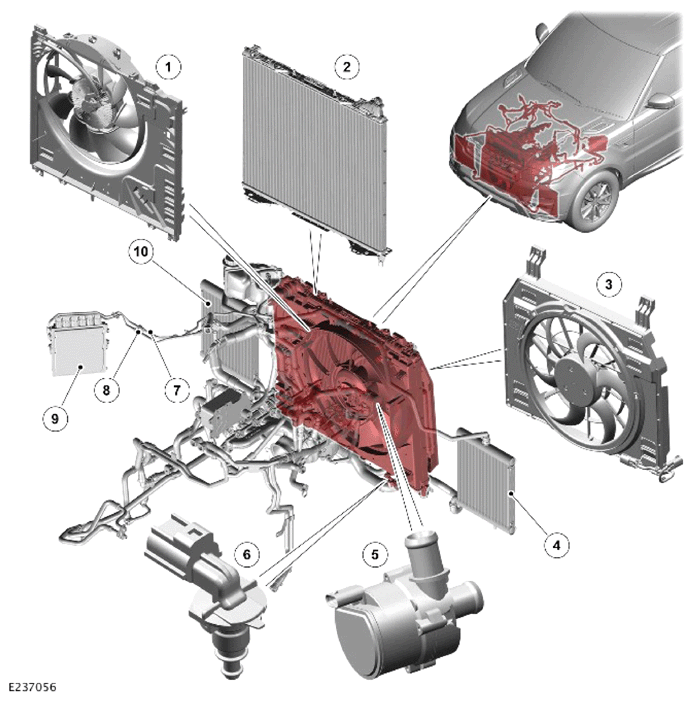

G14058173Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Viscous cooling fan
2 Radiator
3 Electric cooling fan
4 Right auxiliary radiator
5 Auxiliary coolant pump
6 Radiator outlet temperature sensor
7 Engine coolant outlet pipe
8 Engine coolant inlet pipe
9 PCM
10 Left auxiliary radiator
