Component Location - 1 Of 2

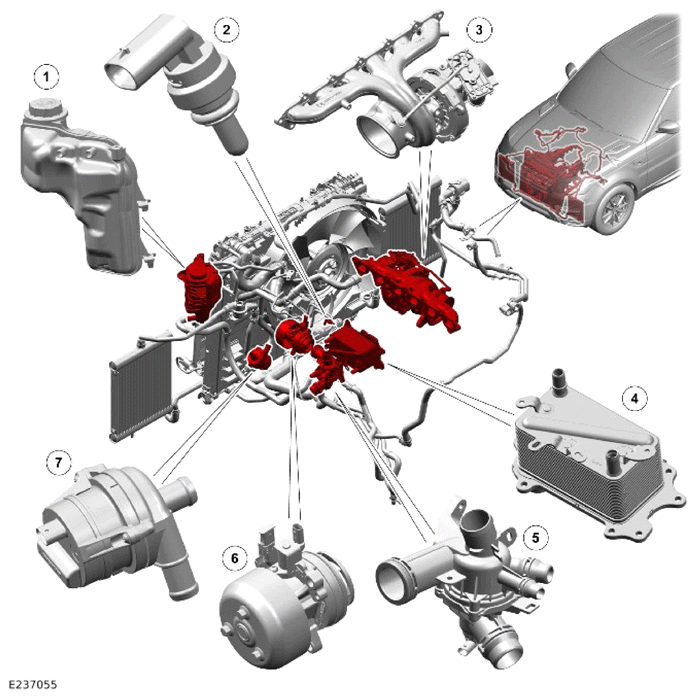

G14058172Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Coolant expansion tank
2 Engine coolant temperature sensor - Cylinder block outlet
3 Turbocharger
4 Oil cooler
5 Electric thermostat with heater element
6 Variable coolant pump
7 Charge air coolant pump
