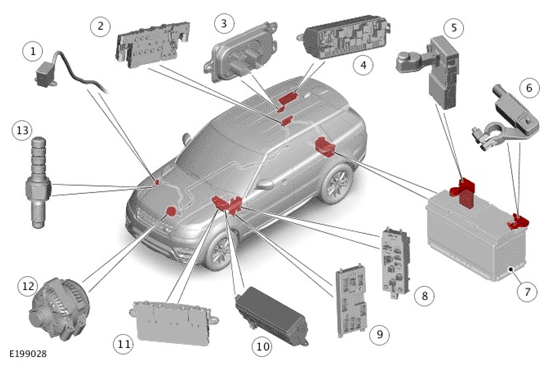

Component Location - 2 Of 3 - Single Battery System With Stop/Start System - All Vehicles, Except Cold Climate TDV6 3.0L Diesel Engine And TDV8 4.4L Diesel Engine Vehicles
| ITEM | DESCRIPTION |
|---|---|
| 1 | Jump start terminal - Positive |
| 2 | Battery Junction Box (BJB) |
| 3 | Voltage Quality Module (VQM) |
| 4 | Rear Junction Box (RJB) |
| 5 | Megafuse |
| 6 | Battery Monitoring System (BMS) sensor |
| 7 | Battery |
| 8 | Passenger Junction Box (PJB) |
| 9 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 10 | Engine Junction Box (EJB) |
| 11 | Auxiliary Junction Box (AJB) |
| 12 | Generator |
| 13 | Jump start terminal - Ground |
