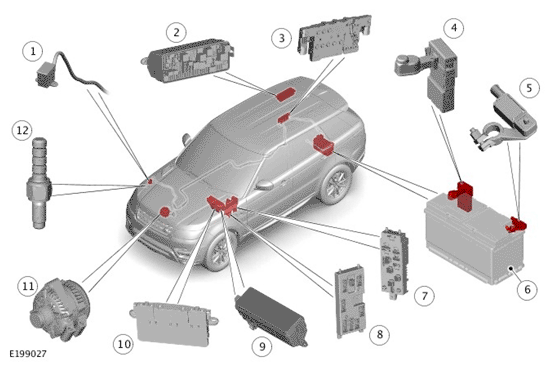

Component Location - 1 Of 3 - Vehicles With Single Battery System
| ITEM | DESCRIPTION |
|---|---|
| 1 | Jump start terminal - Positive |
| 2 | Rear Junction Box (RJB) |
| 3 | Battery Junction Box (BJB) |
| 4 | Megafuse |
| 5 | Battery Monitoring System (BMS) sensor |
| 6 | Battery |
| 7 | Passenger Junction Box (PJB) |
| 8 | Body Control/Gateway Module (BCM/GWM) assembly |
| 9 | Engine Junction Box (EJB) |
| 10 | Auxiliary Junction Box (AJB) |
| 11 | Generator |
| 12 | Jump start terminal - Ground |
