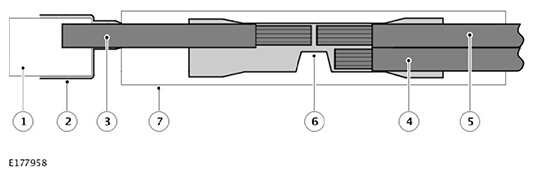

Pulled Out Wire Splice Repair Example

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Original Splice
2. Glue Lined Heat Shrink Sleeve
3. Original Undamaged Wire
4. Pulled Out Wire
5. Original Undamaged Wire
6. Splice Connector
7. Glue Lined Heat Shrink Sleeve

Damaged Splice Repair

If a wiring harness has splice which has been damaged, the splice must be removed and replaced.

Remove the damaged splice by cutting it from the wiring harness, making sure to leave as much undamaged wire as possible on the wiring harness. Using 1 or more suitable splice connectors make a new splice.
