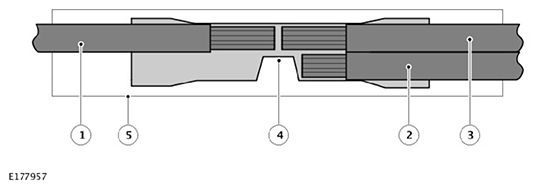

A 2 Wire Splice Repair Example

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

1. Pre-terminated Lead
2. Original Wire
3. Original Wire
4. Splice Connector
5. Glue Lined Heat Shrink Sleeve

Pulled Out Wire Splice Repair

If a wire has become disconnected from its splice, it can be repaired by splicing the disconnected wire to 1 of the wires still part of the original splice.

Cut the undamaged wire of the original splice and with a suitable splice connector, clamp the splice side of the wire. Install a suitable section of glue lined heat shrink sleeve to the splice the wire had disconnected from. Insert the disconnected wire and the undamaged wire into the splice connector and clamp the splice connector.
