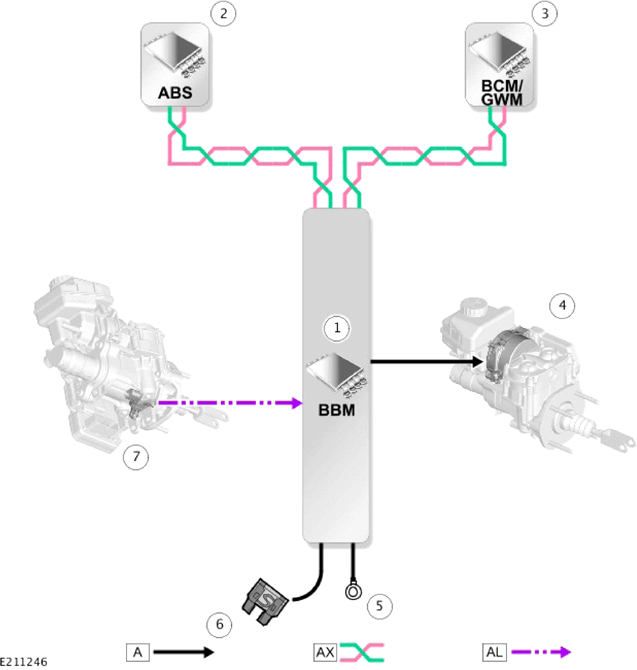

Control Diagram
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AX = FLEXRAY: AL = PULSE WIDTH MODULATION (PWM).
| ITEM |
DESCRIPTION |
| 1 |
Brake Booster Module (BBM) |
| 2 |
Anti-lock Brake System (ABS) control module |
| 3 |
Body Control Module/Gateway Module (BCM/GWM) |
| 4 |
Electric motor |
| 5 |
Ground |
| 6 |
Power supply |
| 7 |
Brake pedal position sensor |
