Component Location

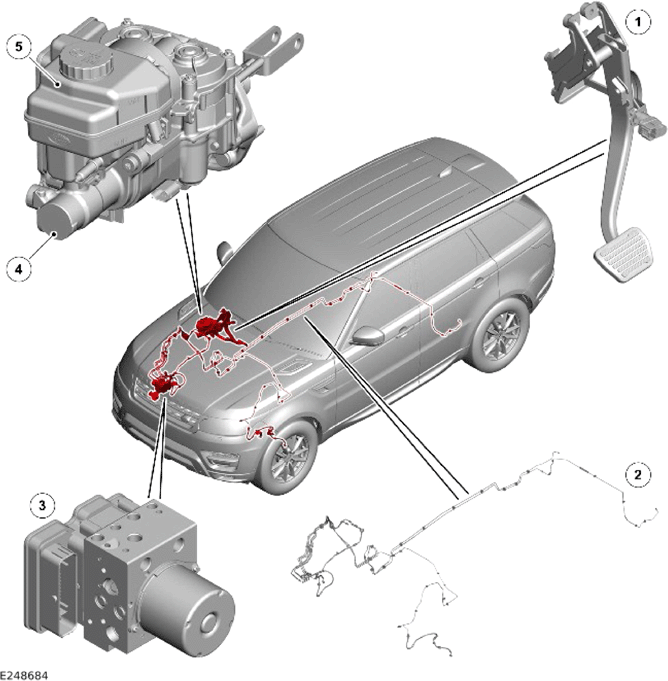

G14048660Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake pedal and brake switch
2 Brake pipes and hoses
3 Anti-lock Brake System (ABS) control module
4 Brake master cylinder
5 Brake fluid reservoir
