Pinpoint Test I: Second Row Centre Load Through Will Not Close As Expected (60/40 Seat)
- I1: LOAD THROUGH FUNCTIONALITY CHECK
- Operate the load through. Check to see if the load through can open and close smoothly, repeat several times to check functionality.
Does the load through operate correctly?
Yes: No further action required, return the vehicle to the customer
No: For Range Rover (L405) or Range Rover Sport (L494) GO to I2. Otherwise GO to I3.
- Operate the load through. Check to see if the load through can open and close smoothly, repeat several times to check functionality.
- I2: VISUAL AND OPERATION CHECKS

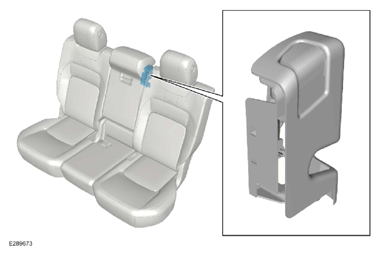

- Check the latch for damage and latching operation.
Is there any visible damage to the ski hatch latch or an issue with the latching/unlatching operation?
Yes: Install a new ski hatch latch using part number LR34647
No: GO to I3.
- Check the latch for damage and latching operation.
- I3: VISUAL AND OPERATION CHECKS

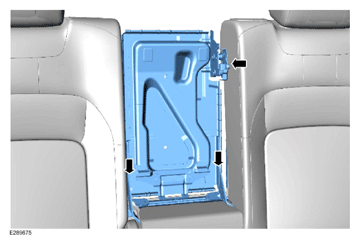

- De-trim the load through and visually inspect the component for any damage or defects.
Were any damage or defects identified on the load through hinges and latch mechanism?
Yes: Install a new load through Refer to: SECOND ROW CENTER SEAT BACKREST
No: Continue with further diagnosis
- De-trim the load through and visually inspect the component for any damage or defects.
