Examples Of Seat Cover Natural Appearance

Examples of Natural Characteristics of Leather

In the document are some examples of the natural characteristics of leather which will mature with use and ageing. These examples of the natural characteristics of leather are not manufacturing defects. Improvements in the seat cover can be achieved by following the smoothing process. The examples in the document show the natural characteristics of leather on the front seat cushion. These types of natural characteristics of leather would not be accepted under the terms of the Jaguar Land Rover warranty agreement.

CUSTOMER SYMPTOMS
Seat cushions creasing Seat backrest creasing Cuts, scratches, scrapes, abrasions, tears, puncture holes Leather cracking/splitting Indentation marks Wavy seam lines Stitch/thread wear Permanent marks Dye migration, pen marks, surface burns, soiling, spillages or stains and incorrect cleaning

Seat Cushions Creasing

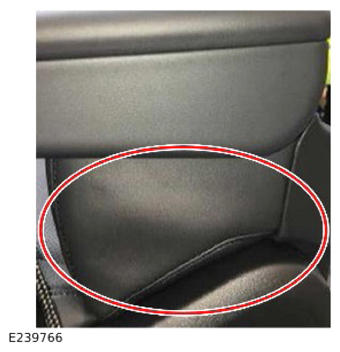

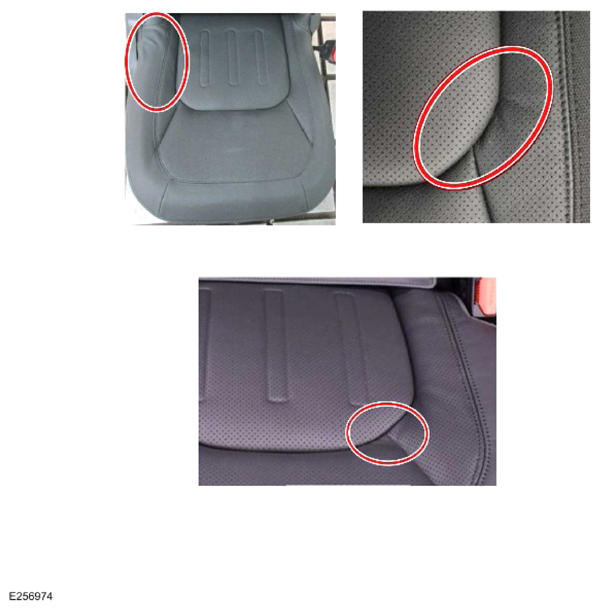

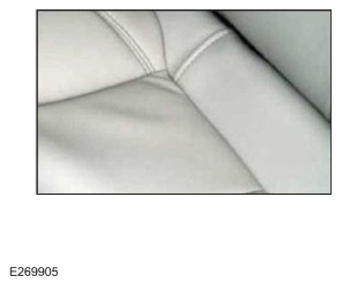

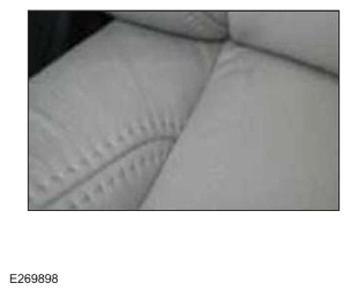

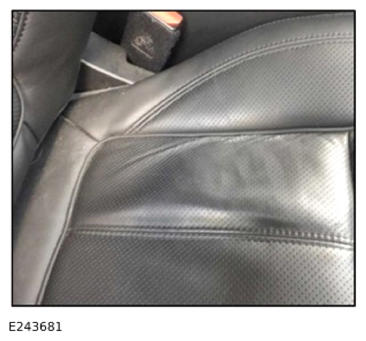

Examples of appearance showing the maximum allowable appearance. The outside of the seat cushion cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Creasing due to wear and tear

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

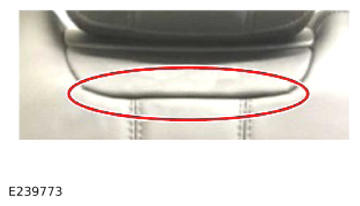

Uneven appearance on the front of the cushion cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

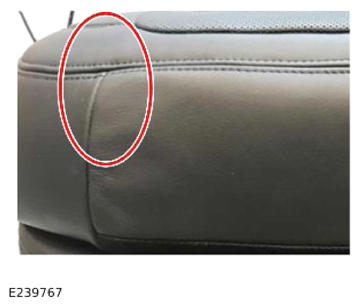

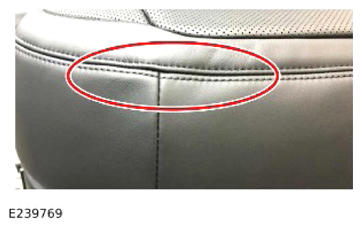

Creasing and seam movement around radius cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

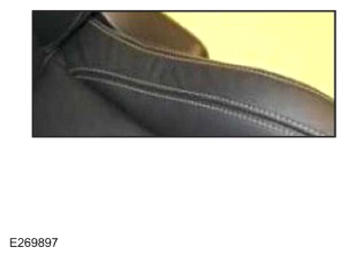

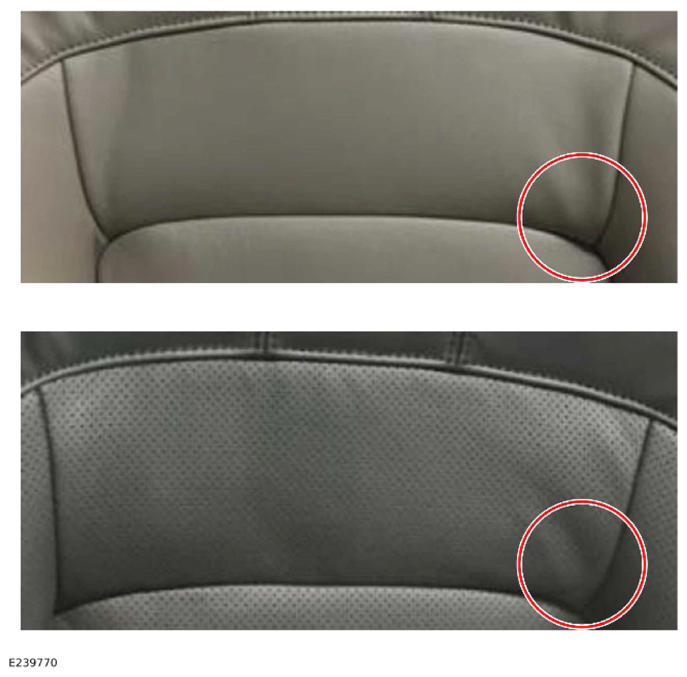

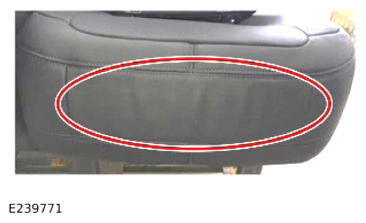

The creasing on the front of the cushion cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Seat Backrest Creasing

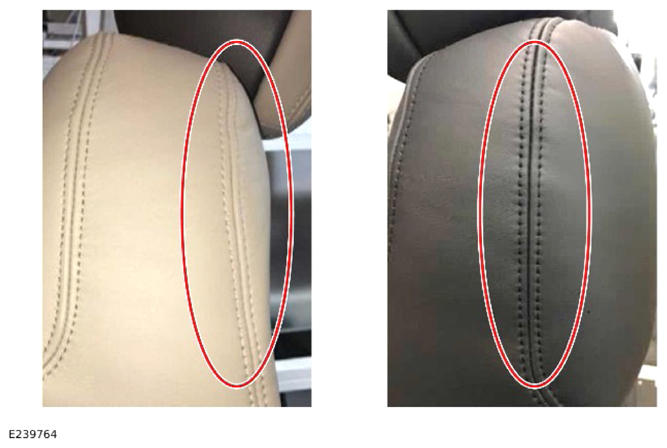

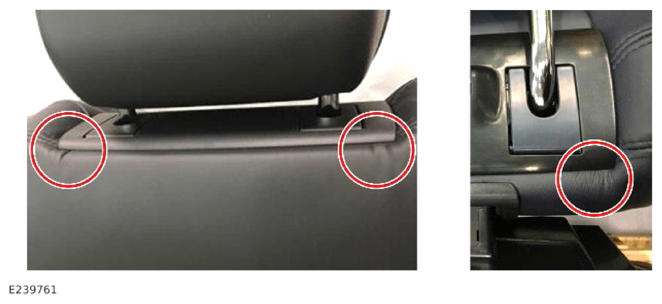

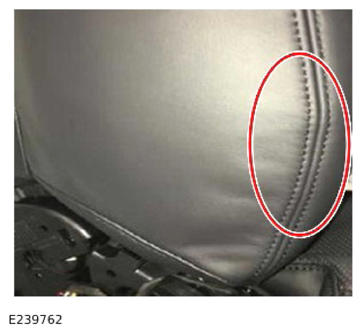

Backrest at the rear of the head restraint cannot be worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

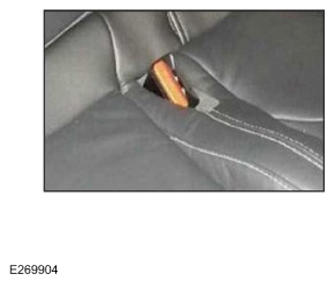

Creasing around the seatbelt stalk cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

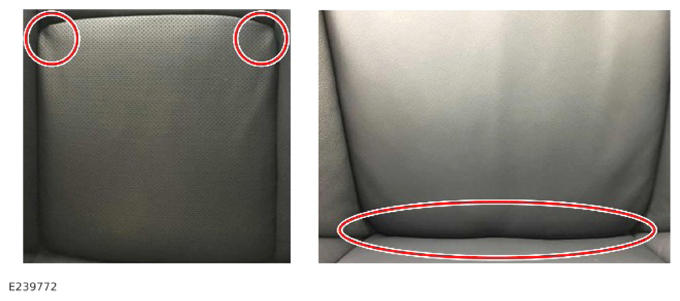

The centre back article on the seat backrest cannot be any worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The square back article on the seat backrest cannot be worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The front panel below the head restraint may appear to be wavy, it cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

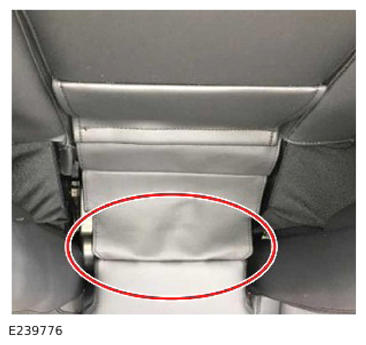

The area below the lower armrest cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

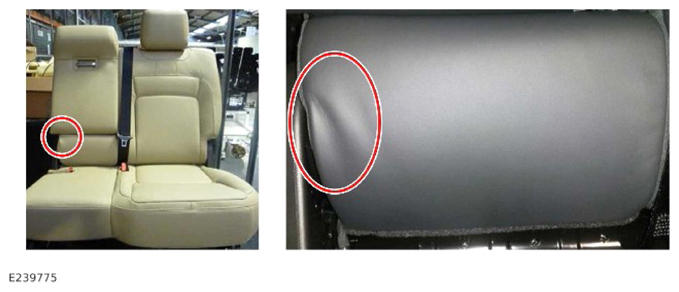

Backrest side (armrest side rear face) creasing sewing variation in radius cannot be worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

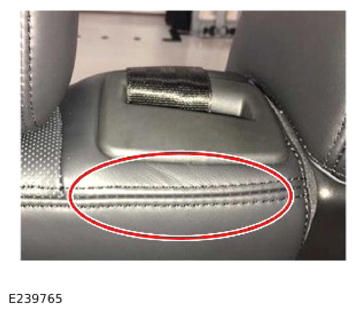

Creasing between the bottom of the seat and the armrest cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Creasing armrest gap is not a defect due to the folding operation of the armrest.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Permanent Marks

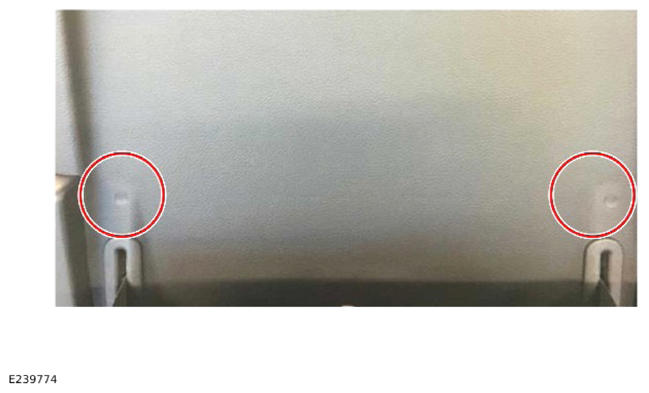

Permanent mark from the map pocket stops (if equipped) cannot be worse than the image below.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Wavy Seam Lines

Waviness appearance on the bottom corner of the seat bolster cannot be worse that the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

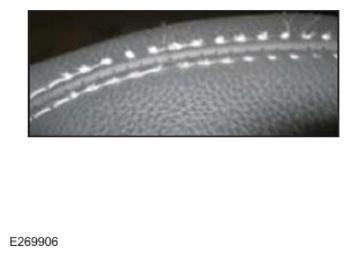

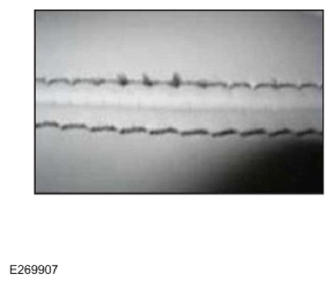

Stitch/Thread Wear

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
