Wheel Knuckle (G2020150): Removal

CAUTION:
  • To avoid damage to the Constant Velocity joint (CV) or CV  boot, do not allow the halfshaft to hang.
  • Nuts and bolts must be tightened with vehicle at normal ride height.
  • Do not use air tools to remove or install the halfshaft nut.
NOTE:
  • If a new knuckle is to be installed, a new wheel bearing will be required.
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Before replacing the Wheel Knuckle, make sure to have followed the diagnosis and testing procedure.

    Refer to: WHEEL BEARINGS

  2. Using Land Rover approved diagnostic system, depressurize the air spring at the relevant corner.
    NOTE: Vehicles with air suspension.

    Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE

  3. Activate the service mode function of the Electric Park Brake (EPB).

    Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION

  4. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

    General Equipment: 2 post lift

  5. Remove the relevant wheel and tire.

    Refer to: WHEEL AND TIRE

  6. Apply the foot brake and remove and discard the halfshaft nut.
    CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

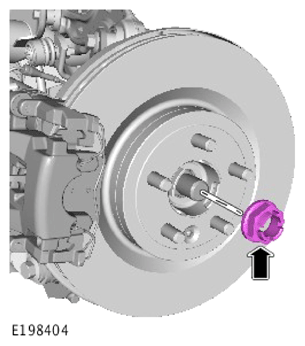

    G14279588Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. Remove the rear brake pads form the relevant side only.

    Refer to: BRAKE PADS

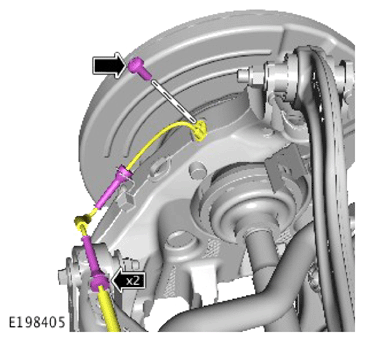

  8. Release the wheel speed sensor from the wheel knuckle.
    CAUTION: Do not use excessive force to remove the component.
    G14279589Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. Release the height sensor link.

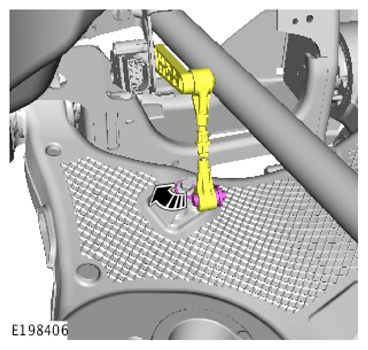

    G14279548Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

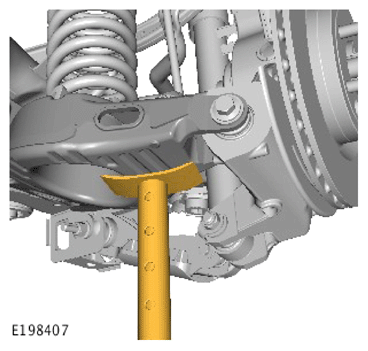

  10. Using a suitable stand, support the lower arm.
    G14279512Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    General Equipment: Vehicle/axle stands

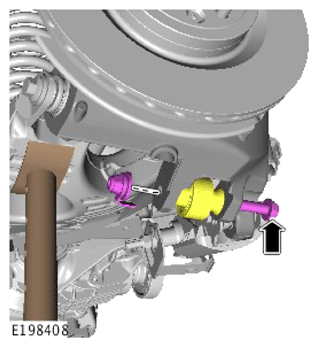

  11. G14279550Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the shock absorber from the wheel knuckle.
    • Discard the nut.

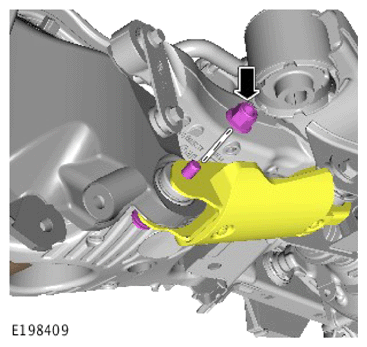

  12. G14279551Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the toe link from the wheel knuckle.
    • Discard the nut and bolt.

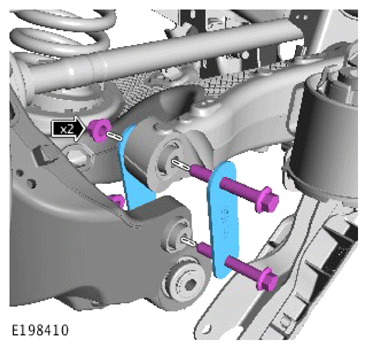

  13. G14279552Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the integral link.
    • Discard the nuts and bolts.

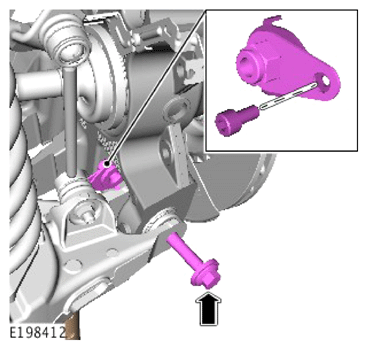

  14. CAUTION: As the halfshaft is still installed extra care must be taken when removing the lower control arm. Failure to follow this instruction might disassemble or damage the CV  or CV  boot.
    G14279595Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the lower arm from the wheel knuckle. Discard the nut and bolt.
    • Discard the nut and bolt.

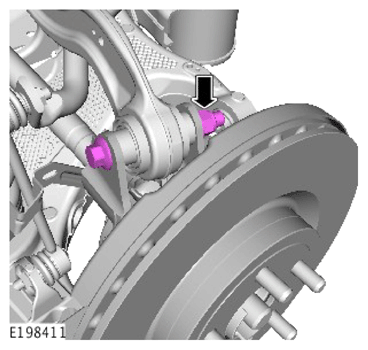

  15. Loosen the upper arm to wheel knuckle nut and bolt.
    CAUTION: As the halfshaft is still installed extra care must be taken when removing the upper control arm. Failure to follow this instruction might disassemble or damage the CV  or CV  boot.
    G14279596Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

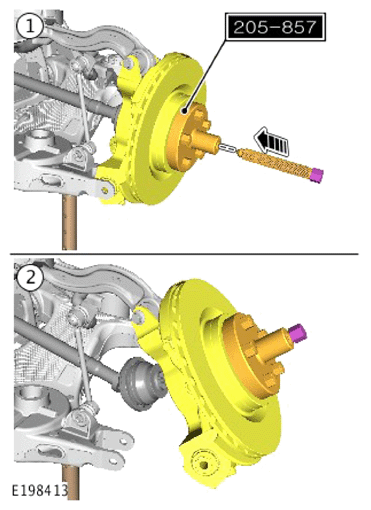

  16. Using the special tools, release the halfshaft from the drive flange.
    CAUTION: Take extra care when releasing the halfshaft. Failure to follow this instruction might result in damage to the CV  boot.
    G14279597Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 205-857

  17. Remove the special tools.
  18. WARNING: The component(s) may be heavy. Take extra care when handling.
    CAUTION: Take extra care when handling the assembly. Failure to follow this instruction might result in damage to the CV  or the CV  boot.
    NOTE: Do not disassemble further if the component is removed for access only.

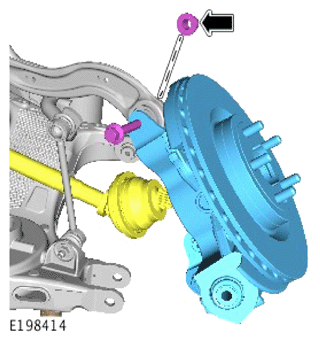

    G14279598Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the wheel knuckle from the vehicle.
    • Discard the upper arm to wheel knuckle nut and bolt.
  19. Remove the brake disc from the wheel knuckle.

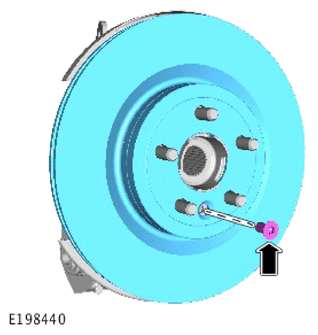

    G14279599Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

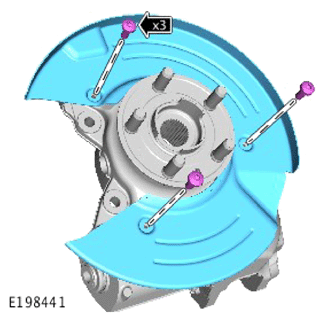

  20. Remove the brake disc shield from the wheel knuckle.
    G14279600Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

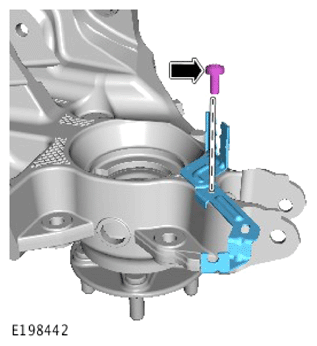

  21. Remove the wiring harness bracket from the wheel knuckle.
    G14279601Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
