Cooling Module (G2135459): Installation

  1. CAUTION: This step must be carried out with the assistance of another technician.

    Install the cooling module.

  2. CAUTION: Make sure that the cooling module is supported for this step.

    Install the right cooling module bracket.

    Torque  : 9 Nm

  3. CAUTION: Make sure that the cooling module is supported for this step.

    Install the left cooling module bracket.

    Torque  : 9 Nm

  4. Connect the Air Conditioning (AC) pipes.

    Torque  : 20 Nm

  5. Connect the charge air cooler radiator upper hose.
  6. Connect and secure the auxiliary coolant pump.

    Torque  : 9 Nm

  7. Connect the auxiliary coolant pump electrical connector.

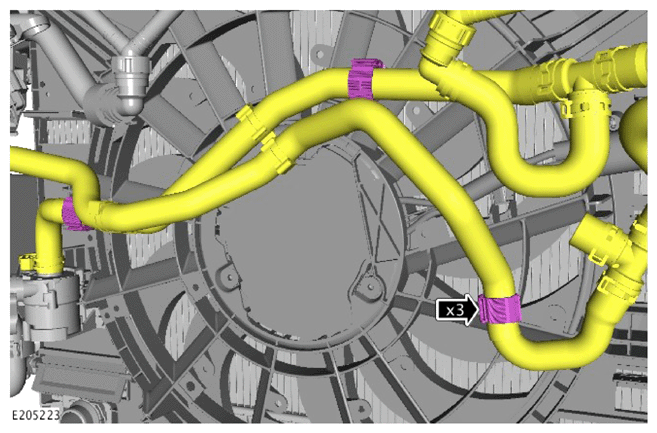

  8. G14286450Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the coolant hoses.

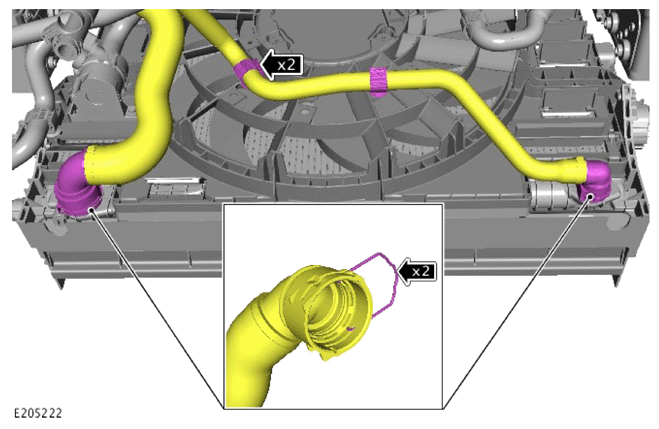

  9. G14286449Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect and secure the coolant hoses.

  10. Connect the electrical connectors.
  11. Install the radiator support brackets.

    Torque  : 9 Nm

  12. Connect the upper coolant hose and pipe.
  13. Install the air ducts.
  14. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  15. Fill the cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

  16. Install the front bumper.

    Refer to: FRONT BUMPER - VEHICLES WITH: CORE SPECIFICATION

  17. Recharge the AC system.

    Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
