Charge Air Radiator

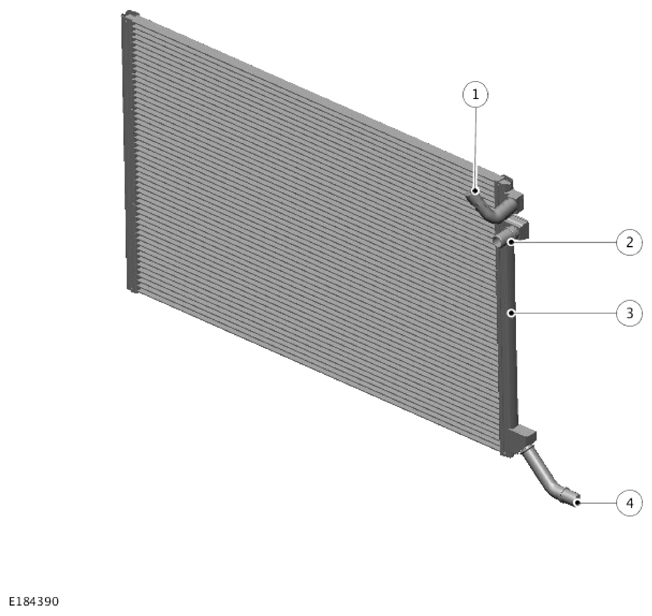

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bleed screw |
| 2 | Charge air radiator outlet hose connection |
| 3 | Charge air radiator |
| 4 | Charge air radiator inlet hose connection |
The charge air radiator is a twin pass cross flow type radiator made from aluminum. The charge air radiator is installed in a plastic frame in the cooling module, between the Air Conditioning (A/C) condensor and the radiator.
The left end tank incorporates the engine coolant inlet and outlet connections and a bleed screw. Hoses connect the inlet of the charge air radiator to the charge air coolant pump, and the outlet to the charge air coolers.
