Turbocharger Oil Supply Tube (G2132923): Removal
WARNING:
Be prepared to collect escaping oil.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the right Exhaust Gas Recirculation (EGR) valve.
Refer to: RIGHT EXHAUST GAS RECIRCULATION VALVE
- Remove the automatic transmission.
Refer to: TRANSMISSION - TDV6 3.0L DIESEL
-
CAUTION: Discard the nuts, bolt and gaskets.

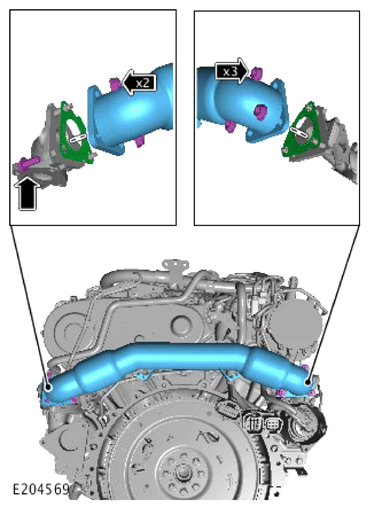

Remove the exhaust manifold crossover pipe.
-
CAUTION: Discard the sealing washers.

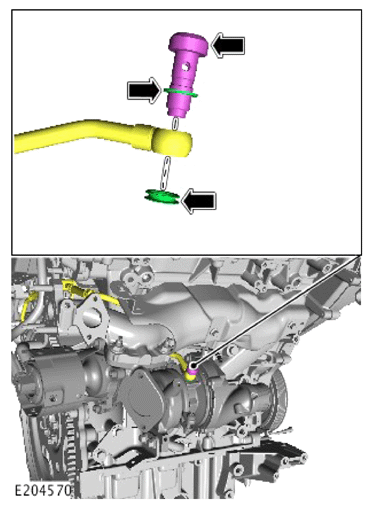

Disconnect the turbocharger oil supply tube from the right turbocharger.
-
CAUTION: Discard the sealing washers.

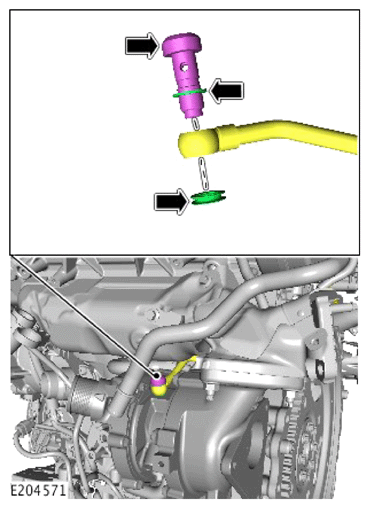

Disconnect the turbocharger oil supply tube from the left turbocharger.
-

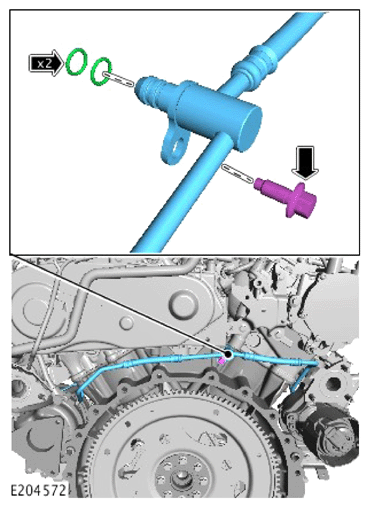

CAUTION: Discard the O-ring seals.
Remove the turbocharger oil supply tube.
