Turbocharger Bypass Valve (G2131203): Installation

CAUTION: Make sure that the auxiliary coolant pump hose clamp aligned in a way that it cannot make contact with the charge air cooler inlet hose. Failure to follow this instruction may cause damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

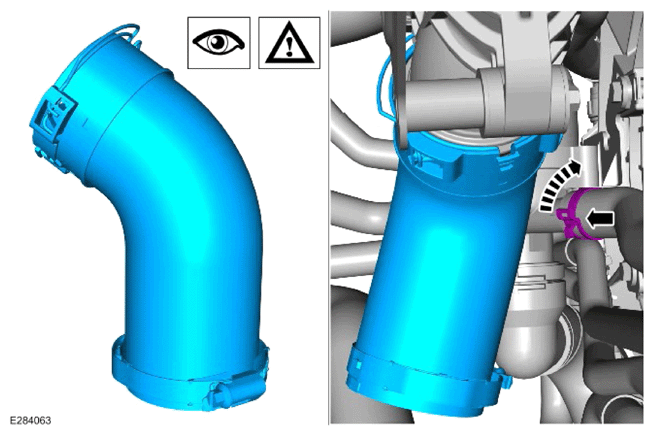

- Check the charge air cooler inlet hose for damage. If the component damaged, replace it.
- Rotate the auxiliary coolant pump hose clamp out of the charge air cooler inlet hose contact area.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

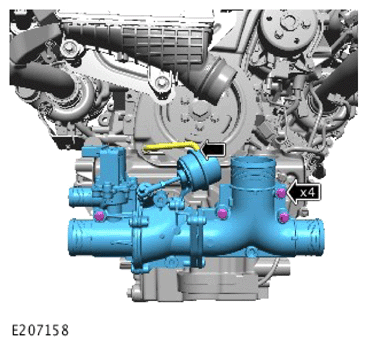

- Install the turbocharger bypass valve.
- Install and tighten the 4 bolts.
  Torque : 10 Nm
- Install the vacuum line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

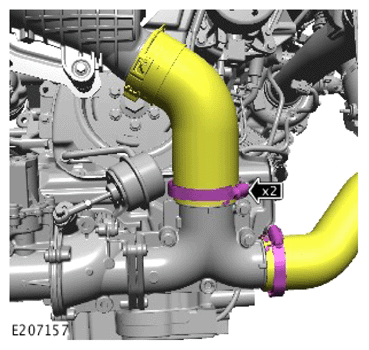

Connect the 2 air outlet pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

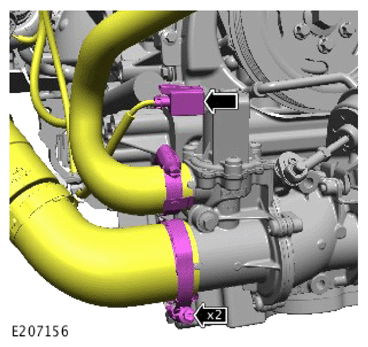

- Connect the 2 bypass valve pipes.
- Connect the electrical connector.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD
