Right Turbocharger (G2131202): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the right Exhaust Gas Recirculation (EGR) valve.
Refer to: RIGHT EXHAUST GAS RECIRCULATION VALVE
Remove the starter motor.
Refer to: STARTER MOTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

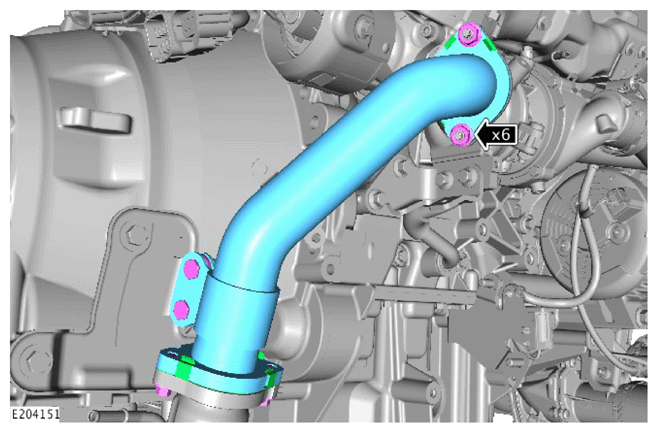

Remove the exhaust cross over pipe. Discard the gaskets, nuts and bolts.
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the turbocharger oil feed pipe. Discard the washers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

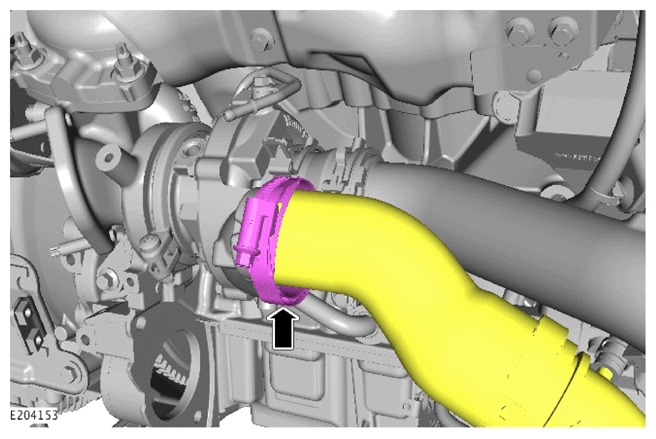

Disconnect the charge air cooler pipe from the turbocharger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

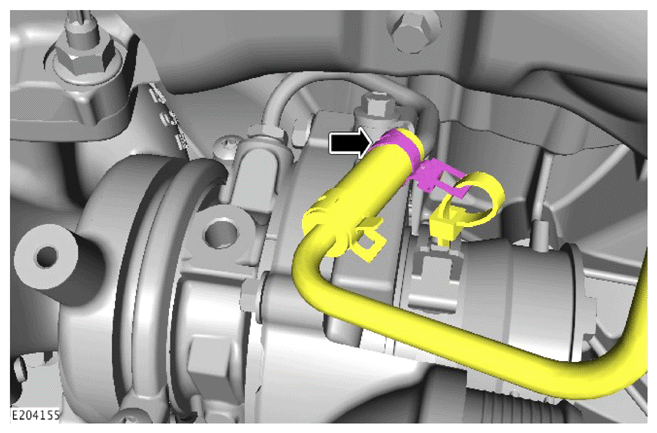

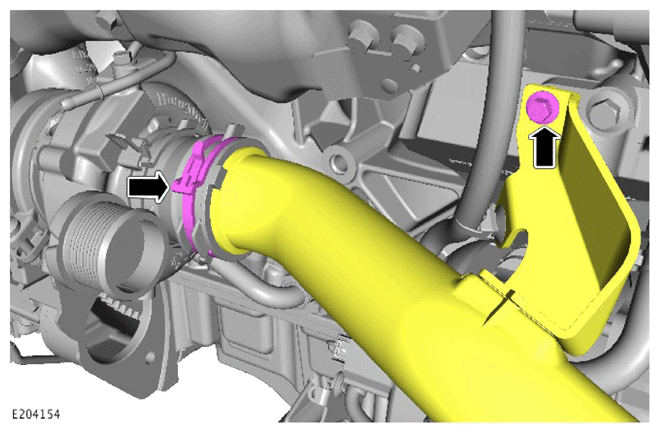

Disconnect the clean air intake pipe from the turbocharger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

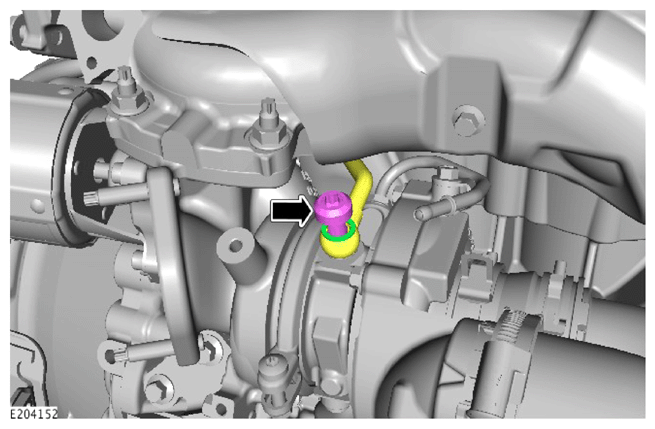

Disconnect the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

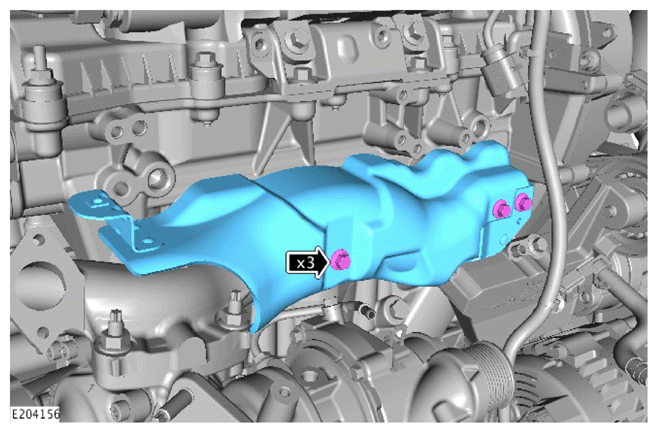

Remove the exhaust manifold heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

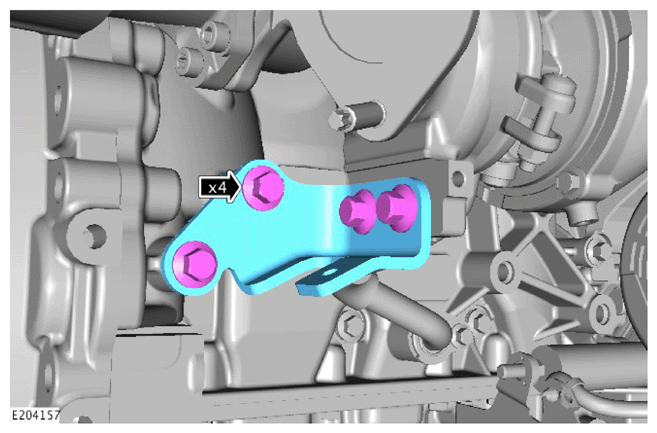

Remove the turbocharger support bracket.
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

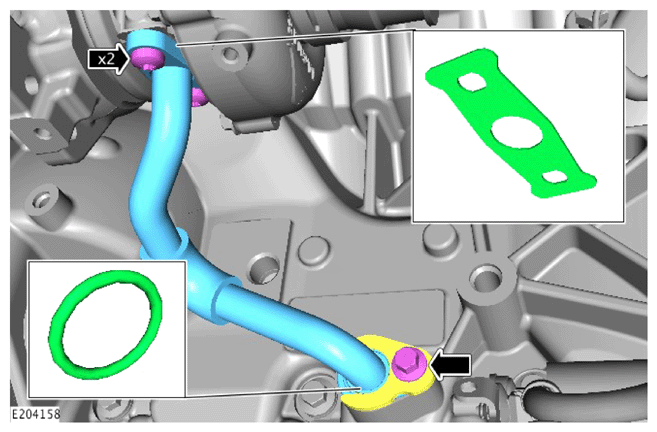

Remove the turbocharger oil return pipe. Discard the seal and gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

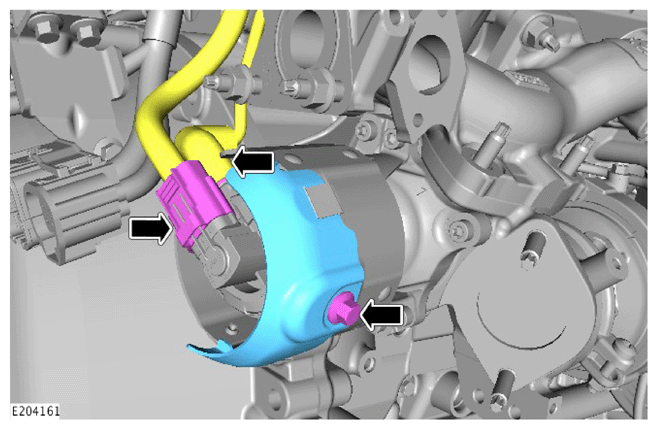

- Disconnect the electrical connector.
- Disconnect the vacuum pipe.
- Remove the turbocharger heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the turbocharger to manifold nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

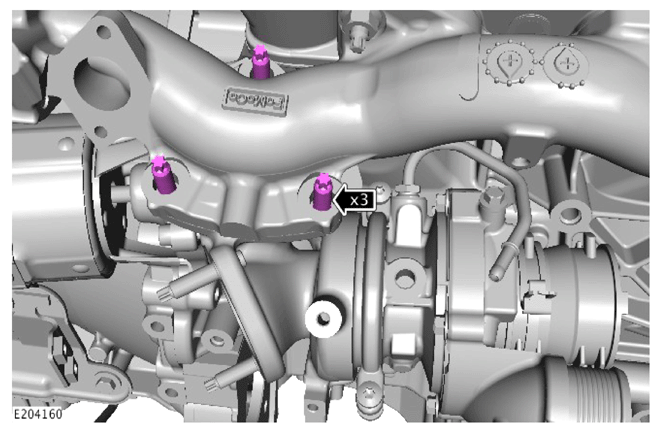

Remove and discard the turbocharger to manifold studs.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

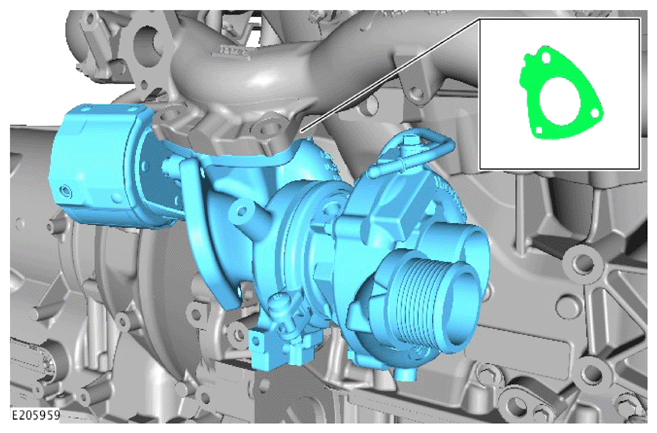

Remove the turbocharger. Discard the gasket.
Do not disassemble further if the component is removed for access only.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

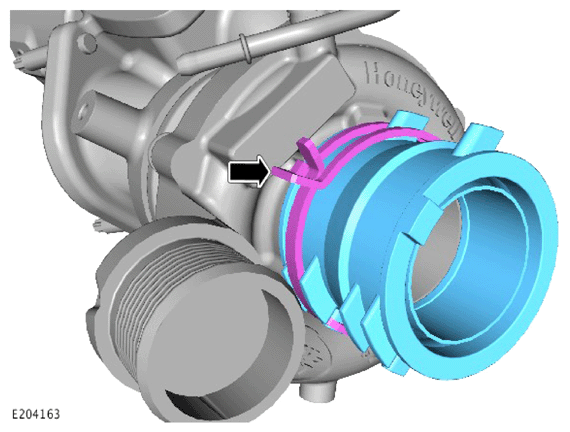

Remove the pipe from the turbocharger.
