Vacuum Control Solenoids

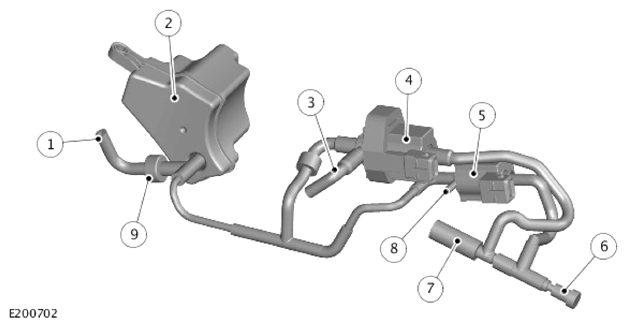

| ITEM | DESCRIPTION |
|---|---|
| 1 | To vacuum pump |
| 2 | Vacuum reservoir |
| 3 | Pipe to turbine intake shut-off valve (secondary turbocharger) |
| 4 | Turbine intake shut-off valve (TSOV) |
| 5 | Charge air solenoid |
| 6 | Pipe cap |
| 7 | Pipe to Exhaust Gas Recirculation (EGR) cooler by-pass valve |
| 8 | Pipe to charge air shut-off valve |
| 9 | Non-return valve |
The turbine intake and charge air solenoids are installed on a bracket attached to the front of the Bank 2 cylinder head. The Powertrain Control Module (PCM) operates the solenoids to apply and release the vacuum in:
- The vacuum actuators of the Turbine intake shut-off valve (TSOV) (of the secondary turbocharger)
- The charge air shut-off valve.
The vacuum for the actuators is produced by the vacuum pump on the rear of the Bank 1 cylinder head. For additional information, Refer to: BRAKE BOOSTER
The solenoids are normally-closed valves installed in the vacuum line between the vacuum reservoir and their related vacuum actuator. Each solenoid is also connected to a line from the left air cleaner, which allows air into the vacuum lines to the actuators when the solenoids are de-energized.
