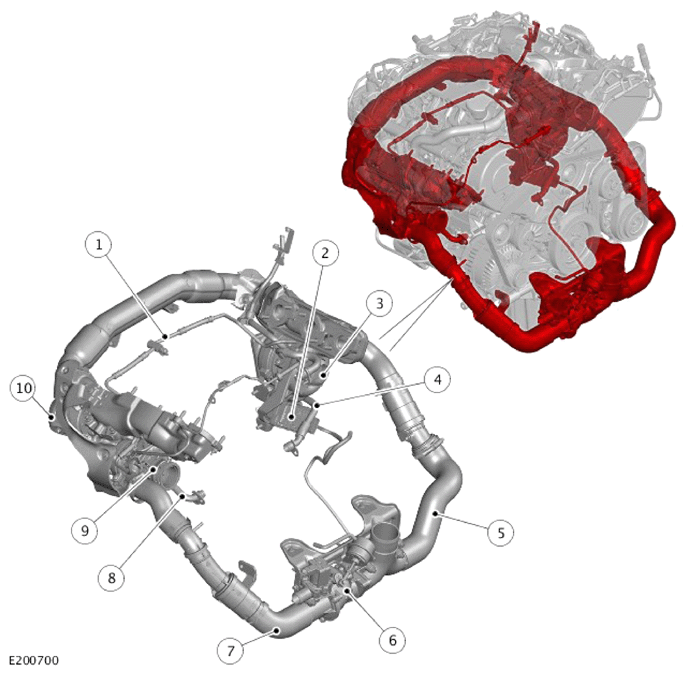

| 1 |
Turbocharger oil supply pipe |
| 2 |
Variable Geometry Turbocharger (VGT) - Primary turbocharger |
| 3 |
Variable Geometry Turbocharger (VGT) oil return pipe |
| 4 |
Variable Geometry Turbocharger (VGT) vane actuator |
| 5 |
Charge air duct - VGT - primary turbocharger to charge air intake valve |
| 6 |
Charge air intake valve |
| 7 |
Charge air duct - Fixed vane turbocharger - secondary turbocharger to charge air intake valve |
| 8 |
Fixed vane turbocharger oil return pipe |
| 9 |
Fixed vane turbocharger - Secondary turbocharger |
| 10 |
Turbine intake shut-off valve (TSOV) |
