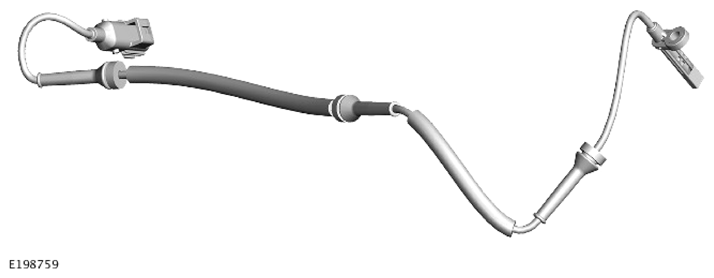

Wheel Speed Sensor

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

There is a wheel speed sensor located by each wheel. The wheel speed sensors are hardwired to the Anti-lock Brake System (ABS) control module. The signals from the wheel speed sensors are integral to determining the operating mode of the ABS control module.
