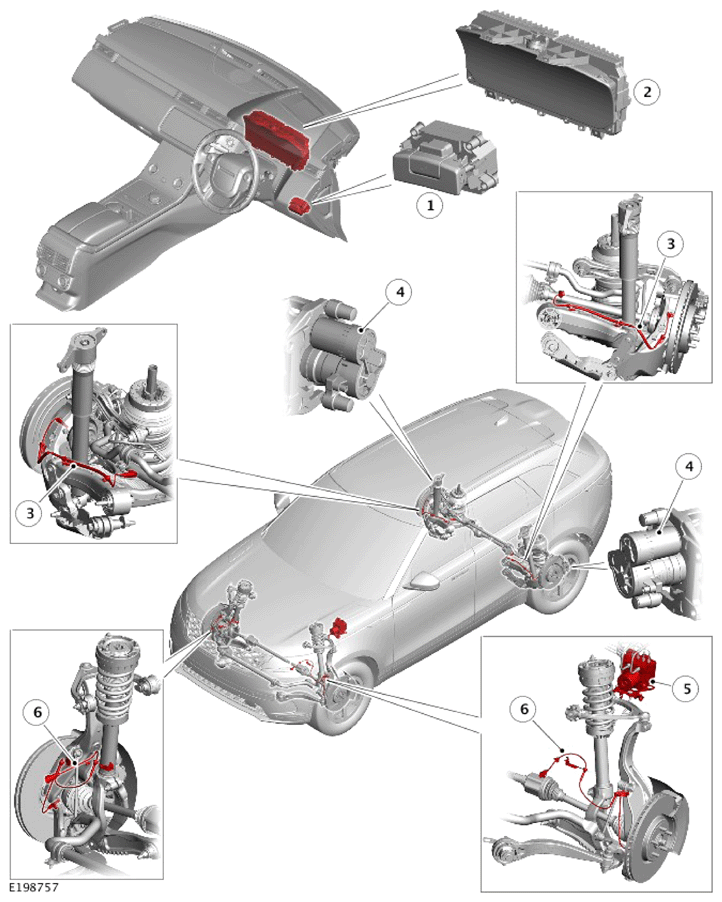

Component Location
NOTE:
Right Hand Drive (RHD) vehicle is shown. The Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric Park Brake (EPB) switch |
| 2 | Instrument Cluster (IC) |
| 3 | Wheel Speed sensor - Rear (2 off) |
| 4 | Electric Park Brake (EPB) Actuator (2 off) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Wheel Speed sensor - Front (2 off) |
